FE150SS Series 5" Retainerless Stainless Steel Wafer Check Valve
FE150SS Series 5" Retainerless Stainless Steel Wafer Check Valve
SKU:DOU-3767ba
Reliable 5" Stainless Steel Wafer Check Valve for critical flow control applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
FE150SS Series 5" Retainerless Stainless Steel Wafer Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
FE150SS Series 5" Retainerless Stainless Steel Wafer Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

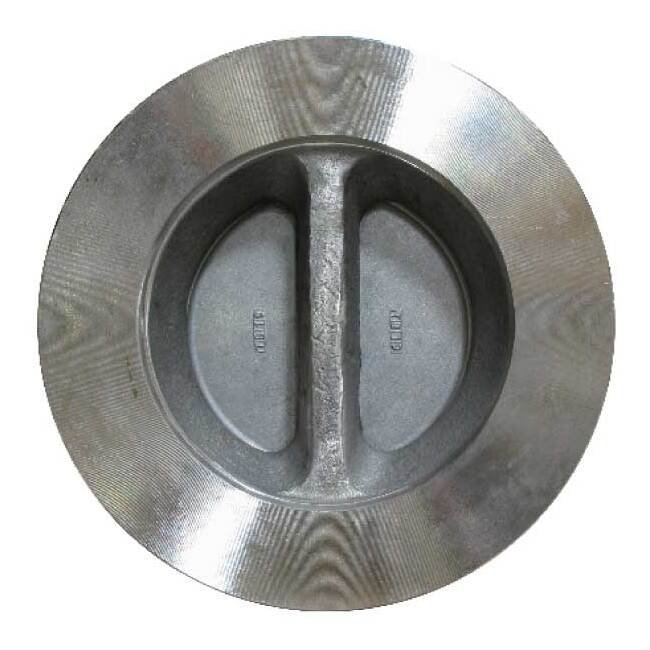

The FE150SS Series 5" Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve by Sure Flow is engineered for durability and reliability. Constructed with high-grade stainless steel, it features a dual disc design for enhanced sealing, making it ideal for critical flow control applications. This valve meets ISO 9001:2008 standards and comes with industry-standard components like Fluorocarbon seals, 316 Stainless Steel discs, and Inconel® torsion springs.
Product Specifications
Dimensions Dimension A
3 1/4 in
Dimensions Dimension B
7 11/16 in
Dimensions Dimension C
5 11/16 in
Dimensions Size
5 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

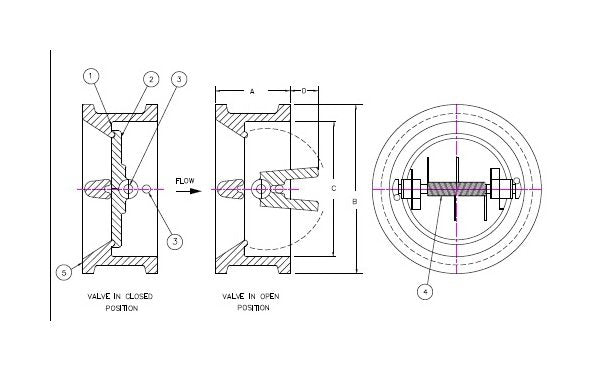

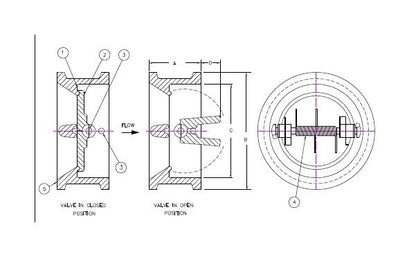

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door | Dual Disc | Wafer
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
