Federal Specification Stainless Steel Jaw & Eye Swivel
Federal Specification Stainless Steel Jaw & Eye Swivel
SKU:STA-c52aa2
High-grade stainless steel swivel for precise lifting and rigging applications, up to 6,000 lbs capacity, meets Federal standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Federal Specification Stainless Steel Jaw & Eye Swivel
$59.99
Quantity: 1
Claim Your Seller Account
Federal Specification Stainless Steel Jaw & Eye Swivel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

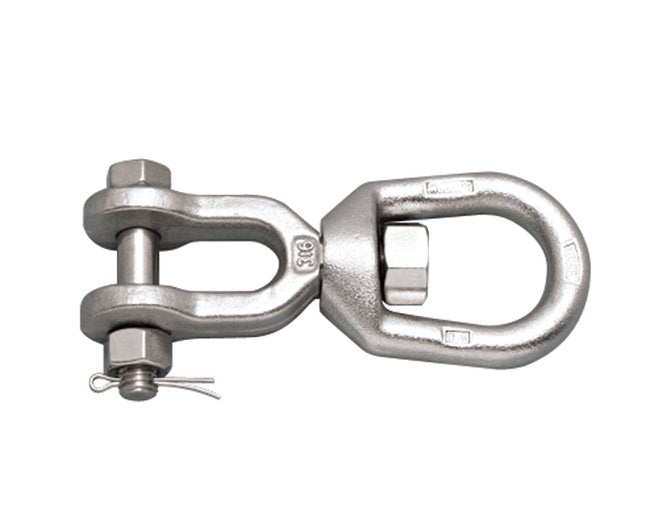

The Federal Specification Stainless Steel Jaw & Eye Swivel is perfect for lifting and rigging applications requiring precision and reliability. Constructed from high-grade 316 stainless steel, this swivel offers exceptional corrosion resistance and durability, supporting loads up to 6,000 lbs. Designed for seamless attaching and detaching, it comes in sizes ranging from 3/16" to 5/8", meeting Federal Specification: RR-C-271F Type VII, Class 3 standards. A vital positioning tool, this swivel is engineered not to swivel or rotate under load, ensuring safety and efficiency in industrial operations.
Ready to Grow Without Cash Flow Constraints?

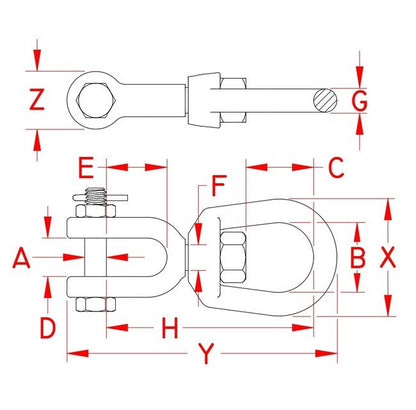

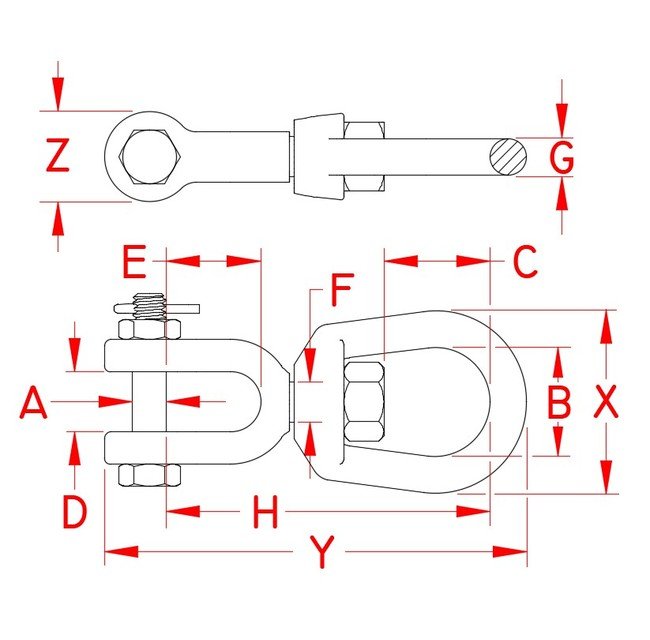

Product Specifications
Specifications Dimension A
5/8 in
Specifications Dimension B
1.75 in
Specifications Dimension C
1.73 in
Specifications Dimension D
1.00 in
Specifications Dimension E
1.50 in
Specifications Dimension F
0.75 in
Specifications Dimension G
0.63 in
Specifications Dimension H
5.35 in
Specifications Dimension X
3.00 in
Specifications Dimension Y
7.09 in
Specifications Dimension Z
1.60 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
2.48 lb
Specifications Working Load Limit Wll
6,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
