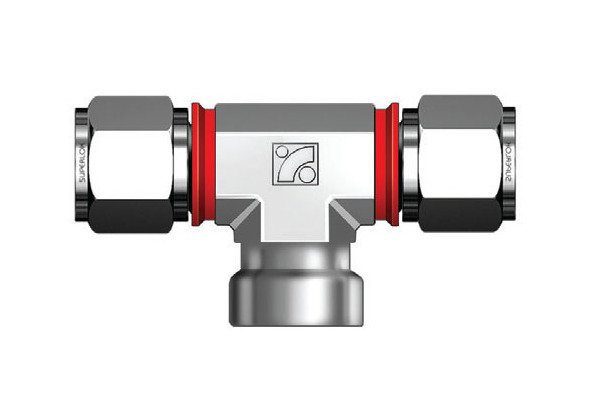

Female Branch Tee Fitting 1/2 in Tube, 1/4 in NPT Female Thread
Female Branch Tee Fitting 1/2 in Tube, 1/4 in NPT Female Thread
SKU:SFB-4ace07
High-quality Female Branch Tee Fitting for seamless tube-to-thread connections. Enhances safety and productivity in various applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Female Branch Tee Fitting 1/2 in Tube, 1/4 in NPT Female Thread
$24.99
Quantity: 1
Claim Your Seller Account
Female Branch Tee Fitting 1/2 in Tube, 1/4 in NPT Female Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFBTI Series Female Branch Tee Fitting is designed to connect fractional tubes to male NPT threads seamlessly. Constructed from high-quality materials such as Alloy 625, Stainless Steel, and more, this fitting ensures durability and reliability in various applications. Featuring i-Fitting® components like body, ferrules, nuts, and a unique check ring for perfect compression, this fitting enhances installer safety, productivity, and cost-efficiency. With dimensions meeting industry standards and a patented design by BMT, it's ideal for valve connections in high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

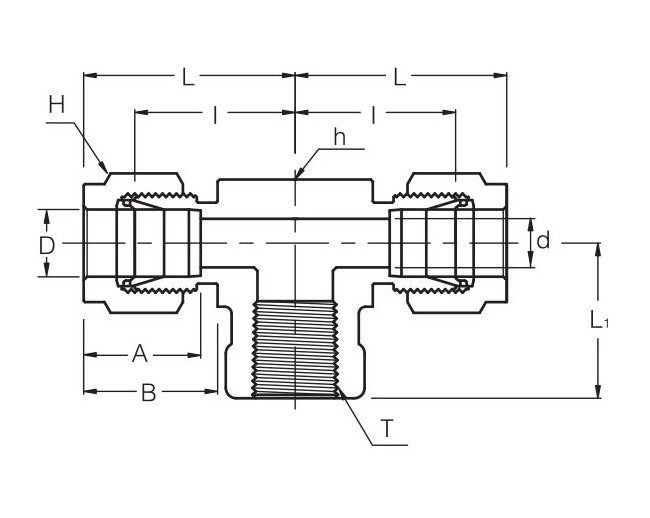

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.06 mm
Technical Specs Dimension L1
22.35 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
