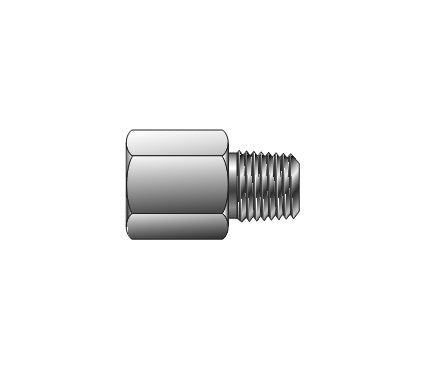

Female BSP to Male NPT Adapter
Female BSP to Male NPT Adapter
SKU:FIT-f13d6f
Parker's Female BSP to Male NPT Adapter: Seamless connections, superior quality, and reliable performance.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Female BSP to Male NPT Adapter
$32.99
Quantity: 1
Claim Your Seller Account
Female BSP to Male NPT Adapter
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Female BSP to Male NPT Adapter by Parker is expertly crafted to stringent quality standards, facilitating seamless connections between NPT and ISO threaded components and systems. This conversion fitting, made from stainless steel or brass, boasts exceptional durability and pressure resistance. Designed with precision, it ensures leak-free joints while offering versatility and reliability in various applications. Ideal for bridging male BSPT and female NPT threaded components, this adapter guarantees optimal performance and longevity in industrial settings.

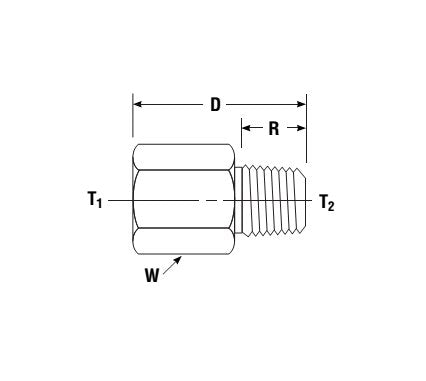

Product Specifications
Dimensions Bspt Thread T1
1-11
Dimensions Connection Type
FBSPT x MNPT
Dimensions D
2.28 in
Dimensions Npt Thread T2
1-11 1/2
Dimensions R
.94 in
Dimensions Working Pressure Brass
2200 psi | 150 bar
Dimensions Working Pressure Stainless Steel
4100 psi | 280 bar
Dimensions W Hex
1 5/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
