Female Connector Fitting for 3/8" Tube and Thread
Female Connector Fitting for 3/8" Tube and Thread
SKU:SFC-b906d5
Versatile Female Connector Fitting for 3/8" Tube & Thread. Industry-leading design for safety & productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Female Connector Fitting for 3/8" Tube and Thread
$29.99
Quantity: 1
Claim Your Seller Account
Female Connector Fitting for 3/8" Tube and Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

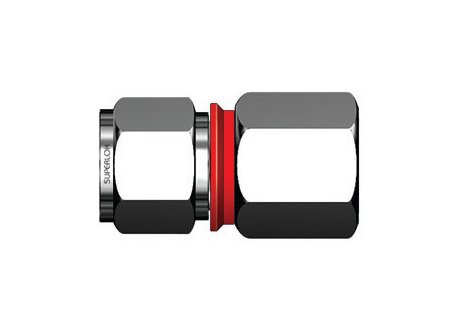

Upgrade your piping system with our SFCI Series Female Connector Fitting designed to connect fractional tubes to male NPT threads. Made from top-quality materials like Alloy 625, Stainless Steel, and more, this fitting ensures durability and reliability. The innovative i-Fitting® components enhance safety, productivity, and cost-efficiency. With dimensions ranging from 7.11mm to 39.11mm, this fitting is versatile and perfect for high-pressure environments. Experience industry-changing design and superior performance with our Female Connector Fitting.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

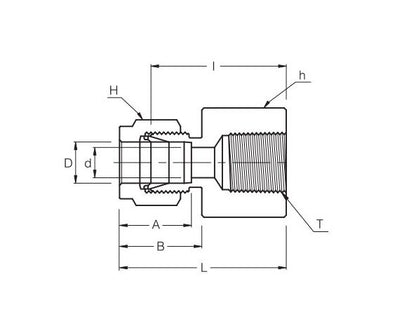

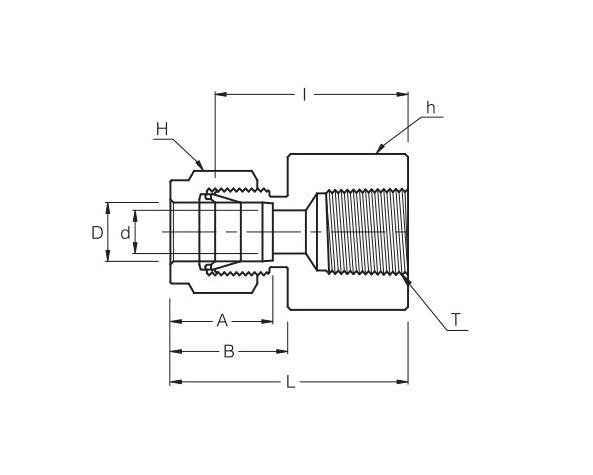

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
31.75 mm
Technical Specs Dimension L
39.11 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
