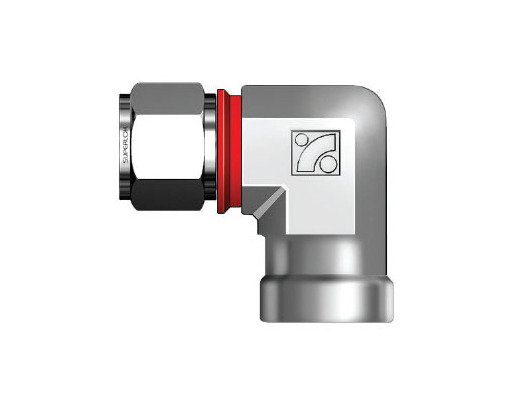

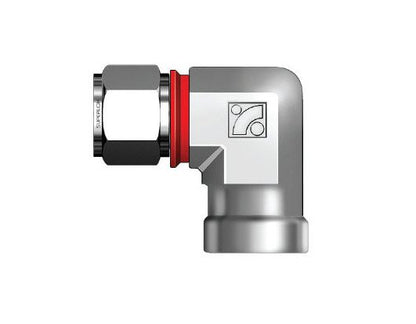

Female Elbow Connector - 1/2" Tube OD x 1/4" NPT Female Elbow
Female Elbow Connector - 1/2" Tube OD x 1/4" NPT Female Elbow
SKU:SFE-ad5542
Efficiently connect fractional tubes to male NPT threads with the durable and patented SFEI Series Female Elbow Connector.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Female Elbow Connector - 1/2" Tube OD x 1/4" NPT Female Elbow
$29.99
Quantity: 1
Claim Your Seller Account
Female Elbow Connector - 1/2" Tube OD x 1/4" NPT Female Elbow
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFEI Series Female Elbow Connector is designed to efficiently connect fractional tubes to male NPT threads, ensuring a secure and leak-free connection. Made from premium materials including Alloy 625, Alloy 825, and Stainless Steel, this connector is built for durability and reliability. With patented i-Fitting® components such as a built-in gap gauge and enhanced safety features, it is ideal for high-pressure and chemical environments. Improve productivity, reduce costs, and ensure precise compression with this industry-changing female elbow connector.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

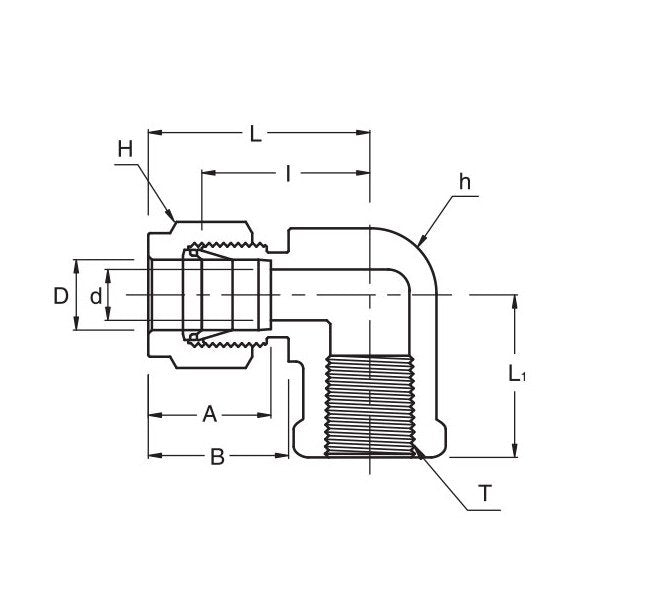

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.06 mm
Technical Specs Dimension L1
22.35 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
