Female Elbow Tube Connector 1/4 in OD, 3/8 in NPT Thread
Female Elbow Tube Connector 1/4 in OD, 3/8 in NPT Thread
SKU:SFE-28ed55
Securely connect fractional tubes to male NPT threads with the SFEI Series Female Elbow Tube Connector for reliable performance in high-pressure environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Female Elbow Tube Connector 1/4 in OD, 3/8 in NPT Thread
$24.99
Quantity: 1
Claim Your Seller Account
Female Elbow Tube Connector 1/4 in OD, 3/8 in NPT Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

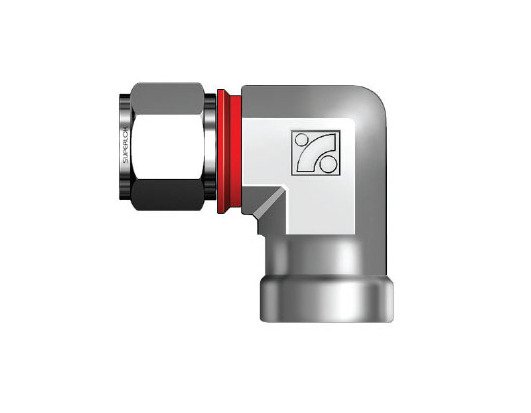

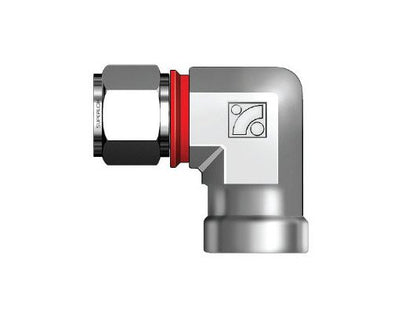

The SFEI Series Female Elbow Tube Connector is designed to seamlessly connect fractional tubes to male NPT threads. Made of high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this connector ensures a secure and leak-free connection. It features an innovative i-Fitting® design with a built-in check ring for precise compression, enhancing safety in challenging environments. Ideal for valve connections, this female elbow improves efficiency, reduces costs, and meets rigorous industry standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

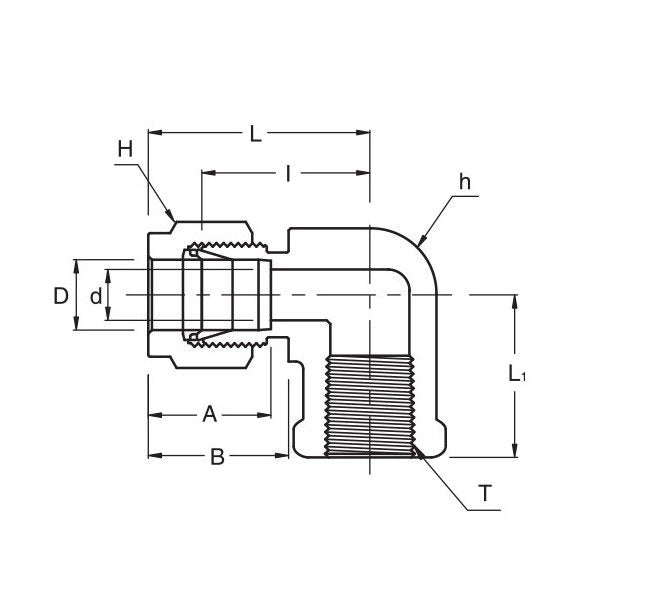

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
24.38 mm
Technical Specs Dimension L
31.75 mm
Technical Specs Dimension L1
22.35 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
