Female Elbow Tube Connector - 10mm OD, 1/4in Thread Size
Female Elbow Tube Connector - 10mm OD, 1/4in Thread Size
SKU:SFE-d0a674
High-quality Female Elbow Tube Connector for secure metric tube to male ISO tapered thread connection, with patented design for safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Female Elbow Tube Connector - 10mm OD, 1/4in Thread Size
$29.99
Quantity: 1
Claim Your Seller Account
Female Elbow Tube Connector - 10mm OD, 1/4in Thread Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

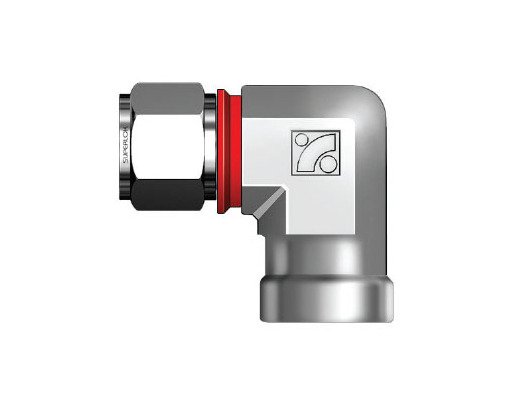

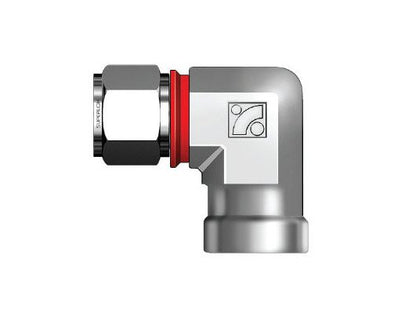

The SFEI Series Female Elbow Tube Connector is a precision-engineered fitting designed to securely connect metric tubes to male ISO tapered threads. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this connector ensures durability and reliability in various applications. The innovative i-Fitting® components provide enhanced safety, productivity, and cost-efficiency, with a patented check ring for perfect compression every time. Ideal for valve connections, this female elbow offers superior performance in high-pressure and hazardous chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

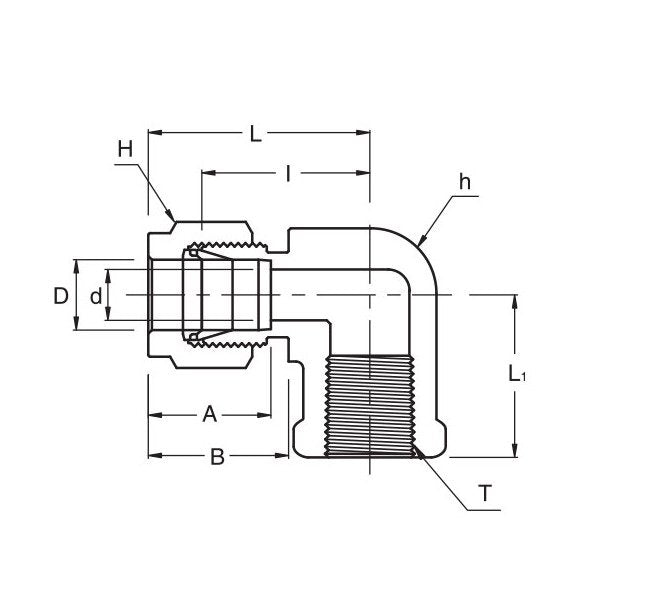

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
33.5 mm
Technical Specs Dimension L1
22.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
