Female NPT to Male BSPP Adapter - ISO Conversion Fitting
Female NPT to Male BSPP Adapter - ISO Conversion Fitting
SKU:FIT-8ddfb5
Precision-designed Female NPT to Male BSPP Adapter for seamless NPT to BSPP transitions. High-quality ISO Conversion Fitting by Parker.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Female NPT to Male BSPP Adapter - ISO Conversion Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Female NPT to Male BSPP Adapter - ISO Conversion Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Female NPT to Male BSPP Adapter is a precision-engineered ISO Conversion Fitting by Parker, ensuring seamless connections between components utilizing both NPT and ISO thread configurations. Compliant with stringent quality control standards, this adapter facilitates secure transitions from male NPT to female BSPP threads, incorporating a Bonded Seal for optimal performance. Crafted from high-grade stainless steel or brass, this adapter guarantees exceptional durability and pressure resistance, with working pressures reaching up to 6200 psi | 430 bar, ideal for critical industrial applications.
Product Specifications

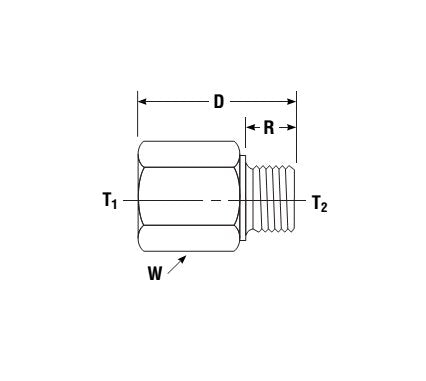

Dimensions Bspp Thread T2
1/4-19
Dimensions Connection Type
FNPT x BSPP
Dimensions D
1.31 in
Dimensions Npt Thread T1
1/4-18
Dimensions R
.44 in
Dimensions Working Pressure Brass
3300 psi | 230 bar
Dimensions Working Pressure Stainless Steel
6200 psi | 430 bar
Dimensions W Hex
3/4 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
