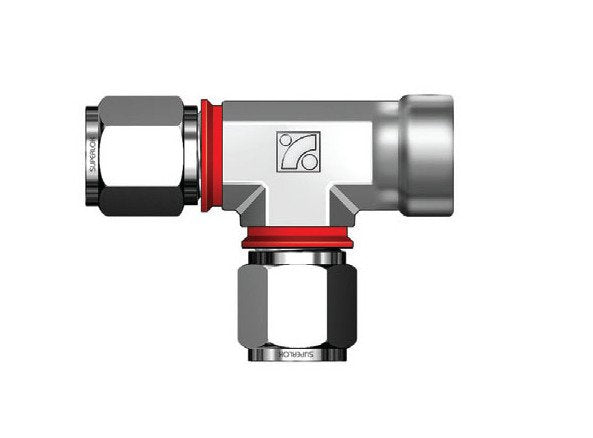

Female Run Tee Fitting 1/4 in Tube OD x 1/4 in NPT Thread
Female Run Tee Fitting 1/4 in Tube OD x 1/4 in NPT Thread
SKU:SFR-6713f7
Efficiently connect 1/4in tubes to NPT threads with SFRTI Female Run Tee Fitting.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Female Run Tee Fitting 1/4 in Tube OD x 1/4 in NPT Thread
$14.99
Quantity: 1
Claim Your Seller Account
Female Run Tee Fitting 1/4 in Tube OD x 1/4 in NPT Thread
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFRTI Series Female Run Tee Fitting is designed to securely connect 1/4 inch tubes to male NPT threads. Made from a range of durable materials including stainless steel and brass, this fitting features the innovative i-Fitting® design, ensuring perfect compression and enhancing installation safety in high-pressure environments. With dimensions meeting industry standards, this fitting optimizes productivity while reducing costs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

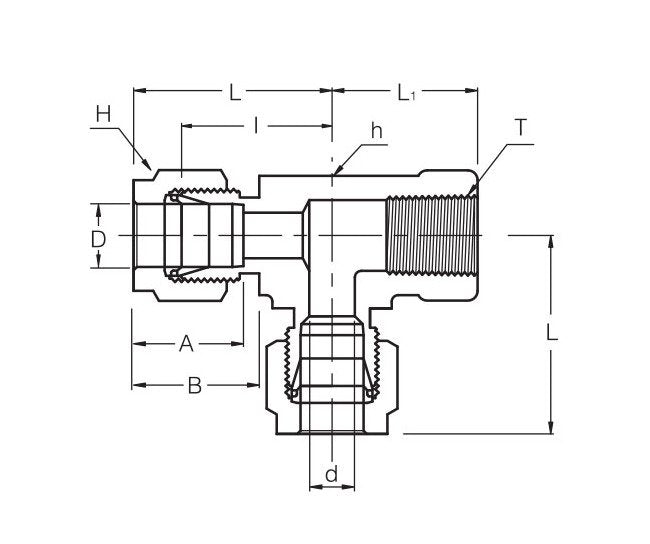

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
22.35 mm
Technical Specs Dimension L
29.71 mm
Technical Specs Dimension L1
22.35 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
