Female Tee Needle Valve - BSP Taper Thread

Name: Female Tee Needle Valve - BSP Taper Thread
Brand: World Wide Metric, Inc.
SKU: FIT-e424fa
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-e424fa

High-quality Female Tee Needle Valve with BSP Taper Thread for precise hydraulic control. Various pressure options available.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

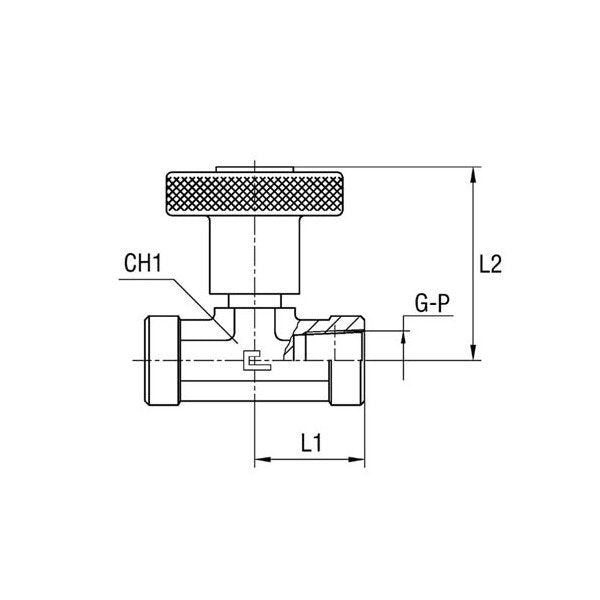

The Female Tee Needle Valve with BSP Taper Thread is a versatile hydraulic check valve designed for various pressure requirements, offering Extra Light Duty, Heavy Duty, and Light Duty options. With a Nominal Operating Pressure of 350 bar and a durable Carbon Steel construction, this valve ensures reliable performance and longevity. The G-Thread Size of 1/2, L1 dimension of 41.0 mm, L2 dimension of 64 mm, and CH1 dimension of 27 mm make it suitable for diverse industrial applications.

Product Specifications

Specifications Ch1

27 mm

Specifications G Thread Size

1/2

Specifications L1

41.0 mm

Specifications L2

64 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Female Tee Needle Valve - BSP Taper Thread
