FEP 20kV High Voltage Wire 22AWG
FEP 20kV High Voltage Wire 22AWG
SKU:HIG-c3d266
Enhance high voltage systems with FEP insulated 22AWG wire for superior durability and performance. Ideal for various applications with a 20kVDC rating. Operating temp: -55 to 125°C.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
FEP 20kV High Voltage Wire 22AWG
$15.99
Quantity: 1
Claim Your Seller Account
FEP 20kV High Voltage Wire 22AWG
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

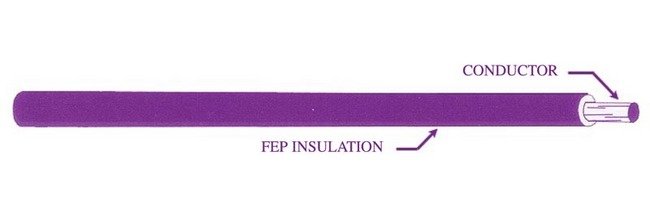

Upgrade your high voltage systems with our FEP 20kV High Voltage Wire. With FEP insulation for superior dielectric strength and resistance, this wire allows for smaller assemblies and better space utilization. Its durability, resistance to dielectric fluid degradation, and silver-plated copper conductor ensure reliable performance. The pre-conditioning recommendation at 204°C safeguards against insulation shrinking. Ideal for cable assemblies, power supplies, TWTs, and transformers, this wire offers low DC corona inception and is a standard part suitable for various applications. Operating temperature ranges from -55 to 125°C.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-9122
Alternate Cable Part Number Equivalents Nomex Jacketed Silicone
178-5614
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-9277
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.031 in | 0.060 in | 0.80 mm
Specifications Conductor Gauge
22 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/34
Specifications Default Color
Natural
Specifications Diameter Over Insulation
0.060 in | 1.50 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.060 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
20 kVDC
