FEP High Voltage Wire - 16 AWG, 25 kVDC, Silver Plated Copper Conductor
FEP High Voltage Wire - 16 AWG, 25 kVDC, Silver Plated Copper Conductor
SKU:HIG-39cc13
Enhance high voltage systems with our durable FEP insulated wire for efficient power distribution and reliable performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
FEP High Voltage Wire - 16 AWG, 25 kVDC, Silver Plated Copper Conductor
$24.99
Quantity: 1
Claim Your Seller Account
FEP High Voltage Wire - 16 AWG, 25 kVDC, Silver Plated Copper Conductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

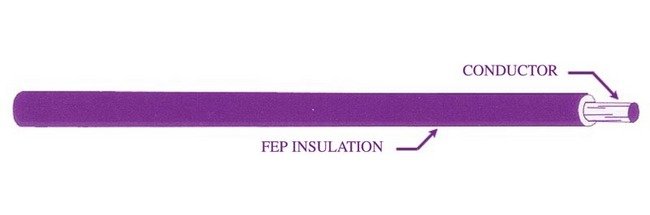

Upgrade your high voltage systems with our FEP insulated wire known for exceptional dielectric strength and resistance to degradation. With a smaller diameter and excellent durability, this wire is ideal for cable assemblies, power supplies, and more. Bonding made easy with proper preparations. Experience low DC corona inception and reliable performance in extreme conditions. Pre-conditioning recommended for optimal performance. Operating Temperature: -55 to 125°C.
Product Specifications
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.059 in | 0.125 in | 1.50 mm
Specifications Conductor Gauge
16 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
41/32
Specifications Default Color
Natural
Specifications Diameter Over Insulation
0.125 in | 3.10 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.125 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
25 kVDC
