FEP High Voltage Wire - 18 AWG, 19/30 Strands, Silver Plated Copper Conductor
FEP High Voltage Wire - 18 AWG, 19/30 Strands, Silver Plated Copper Conductor
SKU:HIG-abe4e7
High voltage wire with exceptional dielectric strength, space-saving design, and high durability. Ideal for diverse applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
FEP High Voltage Wire - 18 AWG, 19/30 Strands, Silver Plated Copper Conductor
$25.99
Quantity: 1
Claim Your Seller Account
FEP High Voltage Wire - 18 AWG, 19/30 Strands, Silver Plated Copper Conductor
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

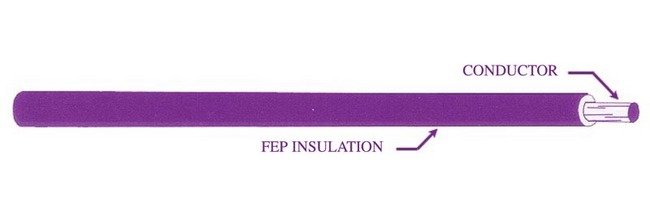

The FEP High Voltage Wire features exceptional dielectric strength, smaller diameter for space optimization, good corona inception qualities, and excellent durability. With FEP insulation offering resistance to pin-holing, high voltage punch-thru, and damage, this wire is ideal for applications in cable assemblies, high voltage power supplies, TWTs, and transformers. Pre-conditioning at 204°C is recommended to prevent insulation shrinking. Operating temperature ranges from -55 to +125°C, making it versatile for various environments.
Product Specifications
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Gauge
18 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/30
Specifications Default Color
Natural
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Standardnon Standard
Standard Part
