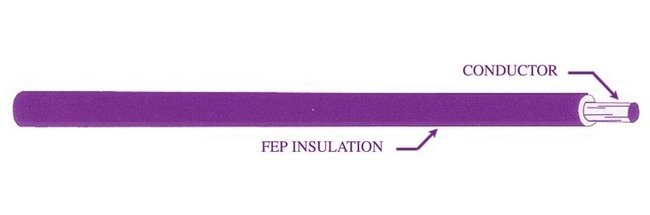

FEP High Voltage Wire - 24 AWG Silver Plated Copper Conductor
FEP High Voltage Wire - 24 AWG Silver Plated Copper Conductor
SKU:HIG-99cb88
High voltage wire with FEP insulation, 24 AWG, silver-plated copper conductor - ideal for compact, high-performance applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
FEP High Voltage Wire - 24 AWG Silver Plated Copper Conductor
$29.99
Quantity: 1
Claim Your Seller Account
FEP High Voltage Wire - 24 AWG Silver Plated Copper Conductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FEP High Voltage Wire features exceptional dielectric strength with FEP insulation, offering superior durability and resistance to dielectric/cooling fluid degradation. Its smaller diameter and bend radius optimize space utilization. With 19/36 strands, silver-plated copper conductor, and an operating temperature of -55 to 125°C, this wire is ideal for high voltage applications in cables, power supplies, and transformers.
Product Specifications
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-9612
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.050 in
Specifications Conductor Gauge
24 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/36
Specifications Default Color
Natural
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Standardnon Standard
Standard Part
