FEP High Voltage Wire - 26 AWG Copper Conductor
FEP High Voltage Wire - 26 AWG Copper Conductor
SKU:HIG-bb70bc
High voltage FEP wire with exceptional dielectric strength, optimized space utilization, and excellent durability. Ideal for various high voltage applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
FEP High Voltage Wire - 26 AWG Copper Conductor
$29.99
Quantity: 1
Claim Your Seller Account
FEP High Voltage Wire - 26 AWG Copper Conductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

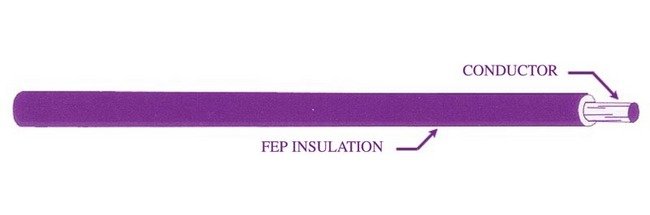

The FEP High Voltage Wire features exceptional dielectric strength, smaller diameter for space optimization, and excellent durability. With good corona inception qualities, it resists dielectric fluid degradation and has low DC corona inception. This wire is ideal for cable assemblies, high voltage hook up wire applications, and encapsulated power supplies. Pre-conditioning at 204°C is recommended due to insulation shrinkage. Operating temperature ranges from -55 to +125 °C.
Product Specifications
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Specifications Conductor Gauge
26 AWG
Specifications Conductor Material
Copper
Specifications Default Color
Natural
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Standardnon Standard
Standard Part
