FH751 Key Locking Compression Latch - 21mm Panel Thickness, C Mounting

Name: FH751 Key Locking Compression Latch - 21mm Panel Thickness, C Mounting
Brand: All Electronics Hardware
SKU: IND-ea09c8
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-ea09c8

Secure doors & flaps with ease using FH751 Key Locking Compression Latch. Ideal for 21mm panels. Durable & reliable design.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

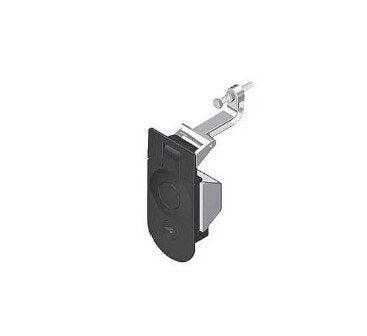

The FH751 Key Locking Compression Latch designed by All Electronics Hardware offers a reliable and secure solution for latching and locking doors and flaps. With a cylinder style FH751 key locking mechanism and a sturdy C mounting bracket, this latch is ideal for applications requiring a minimum panel thickness of 21mm. Constructed with high-quality materials including mild steel and die-cast zinc, and featuring a black powder-coated finish for durability, this compression latch ensures ease of use and long-lasting performance. Suitable for industrial environments, this compression latch provides a compression range between 45mm and 57mm, catering to various panel thicknesses. Enhance security and functionality with the FH751 Key Locking Compression Latch.

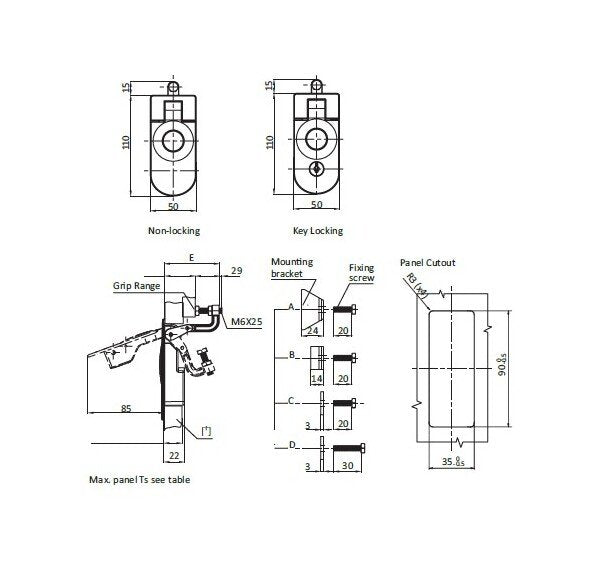

Product Specifications

Specifications Cylinder Style

FH751 Key Locking

Specifications Dimension E

72 mm

Specifications Material

Cam: Mild Steel | Housing, Handle, and Trigger: Die-Cast Zinc

Specifications Maximum Grip Range

57 mm

Specifications Maximum Panel Thickness

31 mm

Specifications Minimum Grip Range

45 mm

Specifications Minimum Panel Thickness

21 mm

Specifications Mounting Bracket

Specifications Surface Finish

Bolt: Zinc Plated | Housing, Handle, and Trigger: Black Powder Coated

FH751 Key Locking Compression Latch - 21mm Panel Thickness, C Mounting
