FH751 Key Locking Handle Compression Latch with Mounting Bracket
FH751 Key Locking Handle Compression Latch with Mounting Bracket
SKU:IND-cb7a7d
Secure and compressive latch for 1-11mm panels, with 14-29mm grip range. Durable construction for industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
FH751 Key Locking Handle Compression Latch with Mounting Bracket
$24.99
Quantity: 1
Claim Your Seller Account
FH751 Key Locking Handle Compression Latch with Mounting Bracket
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

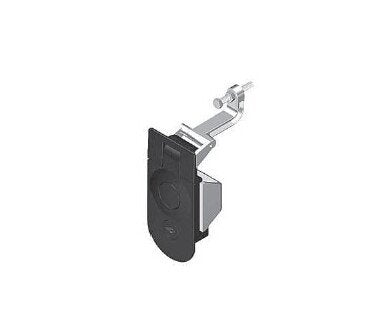

The FH751 Key Locking Handle Compression Latch with Mounting Bracket is an essential solution for secure and compressive latching of doors and flaps. Designed to fit panel thickness ranging from 1mm to 11mm, this latch ensures a tight grip with a range of 14mm to 29mm. The FH751 model features a durable construction with a mild steel cam, die-cast zinc housing, handle, and trigger, all finished with zinc plating and black powder coating. This high-quality latch provides both security and reliability in industrial settings.
Product Specifications
Specifications Cylinder Style
FH751 Key Locking
Specifications Dimension E
44 mm
Specifications Material
Cam: Mild Steel | Housing, Handle, and Trigger: Die-Cast Zinc
Specifications Maximum Grip Range
29 mm
Specifications Maximum Panel Thickness
11 mm
Specifications Minimum Grip Range
14 mm
Specifications Minimum Panel Thickness
1 mm
Specifications Mounting Bracket
A
Specifications Surface Finish
Bolt: Zinc Plated | Housing, Handle, and Trigger: Black Powder Coated
