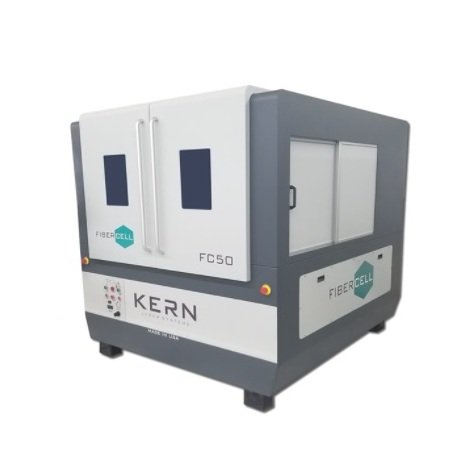

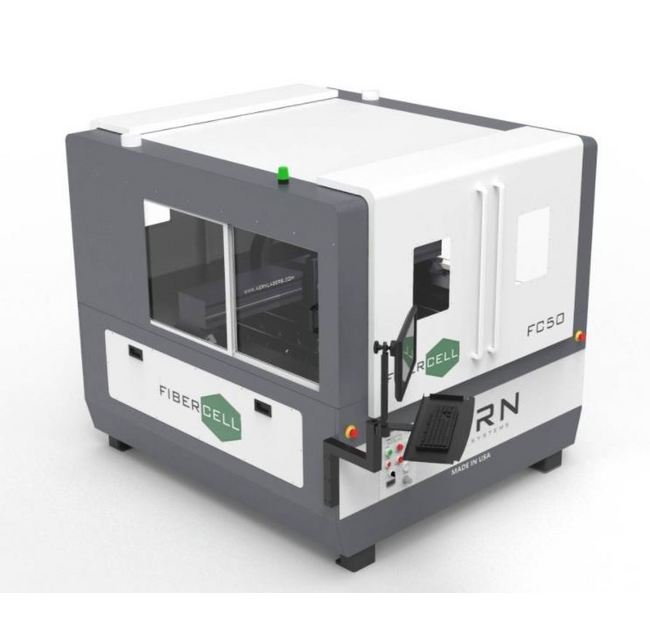

The FiberCELL is a compact sheet metal fabricating fiber laser system, capable of cutting a variety of metals such as stainless steel, mild steel, aluminum, brass and copper. A Class 2 safety enclosure allows the system to be placed in high traffic areas such as busy factory floors and university classrooms. Special polycarbonate windows are installed to ensure harmful laser wavelengths are filtered and cannot leave the enclosure.The FiberCELL uses Kern's next generation HyperDual motion system, allowing users to take full advantage of the system's powerful laser source. Capable of cutting sheets of metal such as stainless steel, aluminum, mild steel, copper and brass
Product Specifications
Additional Features
UL Electrical PanelA UL certified electrical panel is placed on each laser system which turns on and shuts down components of the laser system. CUL and CE approved machines are available by request.LED Interior LightsUltra-bright LED Lights span the top of the enclosures interior, resulting in a well-lit processing work area. These lights make it easy to see the status of the current job being processed.Copper Slat TableA copper slat cutting table is installed in the bed of the FiberCELL laser system. Kern helps to reduce your maintenance costs by providing a CAD file for cutting replacement copper slatsConvenient AccessThe FiberCELL features sliding doors at the front and rear of the machine. Sliding side access doors are installed on both sides. These access points ensures convenient loading and unloading of materials.Programmable Air AssistOxygen, nitrogen and clean dry air supplies can be connected to the FiberCELL and utilized simultaneously. This feature greatly reduces down-time when switching between metal types.Solid Steel ChassisThe FiberCELL is built around a precision-machined, heavy-duty steel weldment as the machine base. The one-piece weldment allows for the machine to arrive fully assembled, greatly reducing installation time.
Additional Information
Metal Cutting with Safety and Performance.
Dimensions Compact Footprint Height
75 in
Dimensions Compact Footprint Length
85 in
Dimensions Compact Footprint Width
74 in
Dimensions Door Extended Footprint Height
77 in
Dimensions Door Extended Footprint Length
114 in
Dimensions Door Extended Footprint Width
115 in
Dimensions Footprint Height
75 in | 1905 mm
Dimensions Footprint Length
85 in | 2159 mm
Dimensions Footprint Width
74 in | 1880 mm
Dimensions Note For Compact Footprint
Doors closed and minor parts removed. Further reduction in footprint is possible with removal of complete enclosure.
Electrical Industry Standards For 3 Phase At 415 Volt V Voltage
European Conformity (CE)
Electrical Number Of Phase
1 | 3
Electrical Voltage At 1 Phase
230 V
Electrical Voltage At 3 Phase
230 V | 415 V
Kcam Laser Software
KCAM® is a laser cutting and engraving software package developed by Kern's in-house software development team. Through years of research and customer feedback, KCAM® has developed into an industry-leading laser control software.KCAM® can be linked with popular design softwares such as CorelDRAW®, AutoCAD® and Adobe Illustrator®, allowing for hundreds of file types to be processed. A convenient user interface provides operators with complete control of the laser systems cutting and engraving parameters. Kern's customers have access to the latest KCAM® software upgrades from our website.Whether you’re cutting thick acrylic or a thin delicate textile, be ensured that KCAM® will provide you with the laser control required for quick and accurate results.File CompatibilityA macro within CorelDRAW® automatically sends your artwork to KCAM® with the click of a single button. KCAM® is also capable of directly opening common file types such as .dxf, .pdf, G-CODE and many more.Other popular CAD softwares such as AutoCAD LT®, Adobe Illustrator® and Solidworks® can be used to automatically load files into KCAM®.Gives You ControlCustomized Pierce Settings. The dwell time, laser power, frequency, focus point and air flow can be set independently from your normal cut settings. This feature ensures metals are cut clean with minimal to no dross.Air Control. Compressed shop air, oxygen or nitrogen can be hooked up to the laser system for optimal processing results on a variety of laserable materials.Vector Path Speed Control. KCAM® mimics a race car by slowing the cutting speed into sharp corners and accelerating out of them. The result is smooth, consistent cutting with the tap of your mouse.Saves You TimeCut Optimizer. Decrease your programming time by letting KCAM® automatically determine the fastest cut order for your most complicated designs.Time Estimator. Provide accurate pricing to your customers by knowing the amount of laser processing time before the product even makes it to the laser bed.Tool Offset. A simple inside/outside offset can be set to compensate for the laser beam kerf. This results in precisely sized parts without modification of your original part drawings.More KCAM® FeaturesBottom-Up & Top-Down EngravingVector Path Speed ControlSoft Home PositioningPart ArrayingAutomation PausesVision Registration SystemVariable Extents EngravingLead-In Speed ControlLine Color SortingPhotoGRAV CompatibleAnti-Banding Engraving ModeHistory LogNine Vector Cutting ColorsLaser Printer DriverTime EstimatorPower Density Control for CornersMultiple Modulation ModesSystem Usage Log
K Vision Camera
The K-Vision Camera package is a fully integrated hardware and software solution allowing fast and accurate cutting of printed materials.This process starts with a nozzle mounted camera which automatically measures the dimensions between registration marks on printed materials. The system then uses these measurements and the registration marks of the original cutting file to compensate for distortion and rotation. The slight adjustments that k-vision makes to the cutting file results in a perfectly matched cut-out in the material being processed. The entire camera system can be easily removed and stored in a protective box when not in use.
Specifications Air Assist Pressure
100 to 250 psi | 9 to 17 bar
Specifications Air Flow Of Vacuum Blower
1500 ft³ or Greater
Specifications Certification
Underwriters Laboratories (UL)
Specifications Cut Material
Aluminum | Anodized Aluminum | Brass | Copper | Mild Steel | Stainless Steel
Specifications Laser Classification
Class 2 Ytterbium Fiber Laser
Specifications Laser Wattage
0.5 to 3 kW
Specifications Maximum Cutting Speed
20 in/s
Specifications Optional Packages
Fume Extractor | K-Vision Camera | Pipe Rotary Attachment
Specifications Origin
Made in USA
Specifications Part Clearance
2.125 in | 53.975 mm
Specifications Positioning Accuracy
0.002 in/ft | 0.1670 mm/m
Specifications Repeatability
0.0005 in/ft | 0.0417 mm/m
Specifications System Weight
3700 lb
Specifications Work Area
52 x 50 in | 1320 x 1270 mm
Standard Features
Nlight LaserRobust, high quality fiber laser sources setup for optimum efficiency, flexibility and reliability in industrial metal cutting environments.Closed-loop ChillerA dual-channel chilling unit properly cools the laser source and cutting head, ensuring a long laser lifetime and consistent cutting results.Vacuum & Fume ExhaustA blower package will remove fumes and small debris created during laser processing. An integrated downdraft table holds material flat on the table.Computer PackageA high-performance computer and monitor is included with each system. An adjustable monitor arm is installed at the front corner of the machine.Software PackageKCAM® Laser Software and CorelDRAW Graphics Suite are linked together allowing over 100 file types to be used, including .DXF, .PDF and G-CODE.Lasermech Fibermini®A compact, lightweight and user-friendly beam delivery system. An optic drawer allows for easy replacement of the protective F-Lens.Safety FeaturesA Class 2 enclosure with interlocked access points ensure a safe working environment. Multiple emergency stop buttons are installed on the machinery.Training ProgramA 2 day training course at Kern's factory is included with each system. Kern's knowledgeable staff will cover safety, maintenance, operation and applications.
