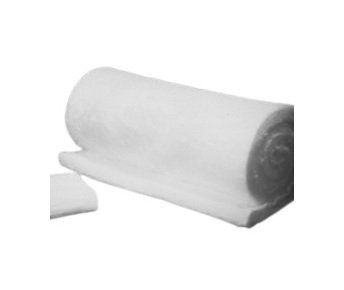

Fiberfrax® PH blanket is a unique product that has been specifically designed to provide excellent filtration capabilities in addition to the high chemical stability and low thermal conductivity that is possessed by all Fiberfrax® products.PH blanket is made from Fiberfrax® bulk ceramic fibers in a unique wet felting process which removes unfiberized particles. In addition to the strength and resiliency afforded by the interlocking of fibers during the manufacturing process, handling strength is further enhanced by the addition of a small amount of organic binder.A typical filtration application would involve utilizing PH blanket as a platinum catalyst recovery filter in nitric acid production. In this application, PH blanket offers numerous advantages over glass wool products including longer life, 50-60% improved filter efficiency, reduced chance of blowouts, and better temperature resistance.
Product Specifications
Additional Information
Fibermat® Mat, PH blanket, and Moist Pak-D® insulation provide additional options for specific application requirements ranging from high-temperature filtration to hot gas velocity resistance.
Note
For additional information about product performance or to identify the recommended product for your application, please contact the Unifrax Application Engineering GroupTest data shown are average results of tests conducted under standard procedures and are subject to variation. Results should not be used for specification purposes.
Product Family Characteristics
Excellent handling strengthExcellent hot strengthLow thermal conductivityLow heat storageLight weightResiliencyThermal shock resistanceHigh heat reflectanceExcellent corrosion resistanceExcellent thermal stabilityExcellent sound absorptionExcellent fire protection
Specific Product Characteristics
Exceptional sound absorptionExcellent filtration capabilities
Applications
Catalyst recovery filter in nitric acid productionDiffusion medium for fluidized bedsFiltration and catalyst carrier medium for radioactive particles and hot exhaust gases
Product Parameters Available Density
96 kg/m³ | 6 lb/ft³
Product Parameters Binder Content
3 to 5 %
Product Parameters Chemical Composition Aluminum Oxide A
43 to 47 %
Product Parameters Chemical Composition Ferric Oxide Fe2
Trace %
Product Parameters Chemical Composition Leachable Chlori
< 10 ppm
Product Parameters Chemical Composition Silicon Dioxide
53 to 55 %
Product Parameters Chemical Composition Sodium Carbonate
< 0.5 %
Product Parameters Chemical Composition Titanium Dioxide
Trace %
Product Properties Color
Tan
Product Properties Mean Fiber Diameter
4 to 8 µm
Product Properties Melting Point
1790 ºC | 3260 ºF
Product Properties Note For Temperature Grade
The temperature grade of Fiberfrax® insulation is determined by irreversible linear change criteria, not product melting point.
Product Properties Recommended Operating Temperature
2150 ºF
Product Properties Temperature Grade
1260 ºC | 2300 ºF
