Fiberfrax® Durablanket® 2600, 1430 Degree Celsius (ºC) Temperature Grade Blanket
Fiberfrax® Durablanket® 2600, 1430 Degree Celsius (ºC) Temperature Grade Blanket
SKU:FIB-899dba
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Fiberfrax® Durablanket® 2600, 1430 Degree Celsius (ºC) Temperature Grade Blanket
$49.99
Quantity: 1
Claim Your Seller Account
Fiberfrax® Durablanket® 2600, 1430 Degree Celsius (ºC) Temperature Grade Blanket
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

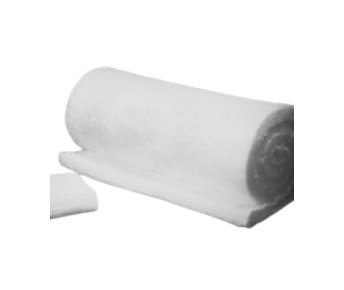

Fiberfrax® Durablanket® 2600 insulation extends the high temperature performance of the Durablanket® product line. The product is made from high-purity alumina, zirconia, and silica spun ceramic fibers. This chemical composition, manufactured in a unique fiber-making process, imparts Durablanket® 2600 insulation with extremely low shrinkage characteristics at elevated temperatures.
Product Specifications
Additional Information

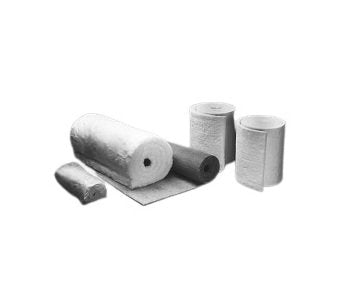

Durablanket® ceramic fiber products are high strength, needled insulating blankets that are made from spun Fiberfrax ceramic fibers. The extra-long spun fibers, cross locked through a unique forming process, produce a blanket with exceptional handling strength. The Durablanket® product family is completely inorganic and available in a variety of temperature grades, densities, and sizes.
Note
For additional information about product performance or to identify the recommended product for your application, please contact the Unifrax Application Engineering GroupTest data shown are average results of tests conducted under standard procedures and are subject to variation. Results should not be used for specification purposes.
Product Family Characteristics
Excellent handling strengthExcellent hot strengthLow thermal conductivityLow heat storageLight weightResiliencyThermal shock resistanceHigh heat reflectanceExcellent corrosion resistanceExcellent thermal stabilityExcellent sound absorptionExcellent fire protection
Specific Product Characteristics
Low shrinkageExceptional handling strengthExceptional hot strength
Applications
Ceramic kilns (abrasives, sanitary ware, electrical insulators, etc.)Billet/slab reheat furnacesSeals, gaskets, batten stripsForge furnacesRefractory kilnsBOF door/shieldsSoaking pit sealsHigh temperature kilns and furnacesBoiler liningsFurnace door linings and sealsGlass furnace crown insulationIncineration equipmentSkid pipe insulation
Product Parameters Available Density
96 kg/m³ | 128 kg/m³ | 6 lb/ft³ | 8 lb/ft³
Product Parameters Chemical Composition Aluminum Oxide A
29 to 31 %
Product Parameters Chemical Composition Leachable Chlori
< 10 ppm
Product Parameters Chemical Composition Silicon Dioxide
53 to 55 %
Product Parameters Chemical Composition Zirconium Dioxid
15 to 17 %
Product Properties Average Fiber Diameter
3.5 µm
Product Properties Color
White
Product Properties Melting Point
1760 ºC | 3200 ºF
Product Properties Note For Temperature Grade
The temperature grade of Fiberfrax® insulation is determined by irreversible linear change criteria, not product melting point.
Product Properties Recommended Operating Temperature
2450 ºF
Product Properties Specific Gravity
2.73 g/cm³
Product Properties Specific Heat At 1093 Degree Celsius
1130 J/kg ºC | 0.27 Btu/lb·ºF
Product Properties Temperature Grade
1430 ºC | 2600 ºF
