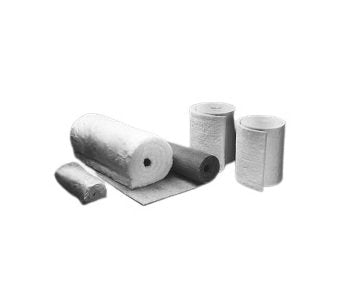

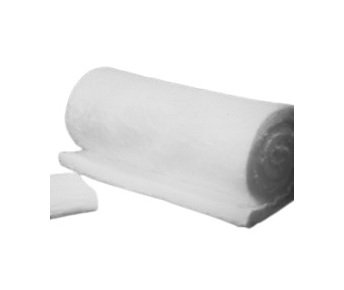

Fiberfrax® Fibermat® is a lightweight, high-strength needled insulating blanket. The blanket fibers are spun from a ceramic composition having a normal use limit of 760 ºC (1400 ºF). Fibermat® is completely inorganic and derives its exceptional strength from the needling of long ceramic fibers.It has excellent thermal and acoustical insulating properties.
Product Specifications
Additional Information
Fibermat® Mat, PH blanket, and Moist Pak-D® insulation provide additional options for specific application requirements ranging from high-temperature filtration to hot gas velocity resistance.
Note
For additional information about product performance or to identify the recommended product for your application, please contact the Unifrax Application Engineering GroupTest data shown are average results of tests conducted under standard procedures and are subject to variation. Results should not be used for specification purposes.
Product Family Characteristics
Excellent handling strengthExcellent hot strengthLow thermal conductivityLow heat storageLight weightResiliencyThermal shock resistanceHigh heat reflectanceExcellent corrosion resistanceExcellent thermal stabilityExcellent sound absorptionExcellent fire protection
Specific Product Characteristics
Exceptional handling strengthExceptional sound absorptionExcellent compression recovery
Applications
Acoustical insulationThermal insulation for external applicationsInsulating pads
Product Parameters Available Density
88 kg/m³ | 5.5 lb/ft³
Product Parameters Chemical Composition Aluminum Oxide A
29 to 47 %
Product Parameters Chemical Composition Leachable Chlori
< 10 ppm
Product Parameters Chemical Composition Silicon Dioxide
52 to 57 %
Product Parameters Chemical Composition Sodium Carbonate
< 0.5 %
Product Parameters Chemical Composition Zirconium Dioxid
< 18 %
Product Parameters Nominal Weight At 12 Inch In Thicknes
3.7 oz/ft²
Product Parameters Nominal Weight At 1 Inch In Thickness
7.3 oz/ft²
Product Parameters Nominal Weight At 2 Inch In Thickness
14.7 oz/ft²
Product Properties Color
White
Product Properties Mean Fiber Diameter
2.5 to 3.5 µm
Product Properties Note For Temperature Grade
The temperature grade of Fiberfrax® insulation is determined by irreversible linear change criteria, not product melting point.
Product Properties Recommended Operating Temperature
1250 ºF
Product Properties Specific Gravity
2.73 g/cm³
Product Properties Temperature Grade
760 ºC | 1400 ºF
Product Properties Tensile Strength Test Method
American Society for Testing and Materials (ASTM 686-76)
Product Properties Tensile Strength
7 to 10 psi
