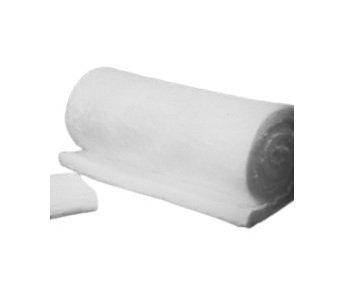

Fibermax® Mat is a high-temperature, flexible mat product that is lightweight (1.5 lb/ft³ density) and highly resilient. It is composed entirely of Fibermax® polycrystalline mullite fibers to produce a product that is high-temperature (1650 ºC/3000 ºF) resistant and virtually shot-free.Fibermax® Mat contains no organic binders or other additives which cause outgassing fumes or associated problems. In addition to exhibiting excellent resistance to attack from most corrosive agents (exceptions include hydrofluoric acid, phosphoric acid and strong alkalies), Fibermax® fiber also resists oxidation and reduction.
Product Specifications
Additional Information
Fibermax® Mat is a high-temperature, flexible mat product entirely composed of Fibermax polycrystalline mullite fibers, making it an extremely lightweight, highly resilient insulator that is virtually free of unfiberized ("shot") particles.
Note
For additional information about product performance or to identify the recommended product for your application, please contact the Unifrax Application Engineering GroupTest data shown are average results of tests conducted under standard procedures and are subject to variation. Results should not be used for specification purposes.
Product Family Characteristics
Excellent handling strengthExcellent hot strengthLow thermal conductivityLow heat storageLight weightResiliencyThermal shock resistanceHigh heat reflectanceExcellent corrosion resistanceExcellent thermal stabilityExcellent sound absorptionExcellent fire protection
Specific Product Characteristics
Extremely low shrinkageLow shot content (95% fiber index)High resiliency
Applications
Expansion joint packingBurner wrapsBatten strips with fiber modulesAluminum homogenizing furnace linings
Product Parameters Available Density
24 kg/m³ | 1.5 lb/ft³
Product Parameters Chemical Composition Aluminum Oxide A
72 %
Product Parameters Chemical Composition Calcium Oxide Ca
0.05 %
Product Parameters Chemical Composition Ferric Oxide Fe2
0.02 %
Product Parameters Chemical Composition Leachable Chlori
11 ppm
Product Parameters Chemical Composition Magnesium Oxide
0.05 %
Product Parameters Chemical Composition Silicon Dioxide
27 %
Product Parameters Chemical Composition Sodium Carbonate
0.10 %
Product Parameters Chemical Composition Titanium Dioxide
0.001 %
Product Properties Color
White
Product Properties Fiber Surface Area
7.65 m²/g
Product Properties Mean Fiber Diameter
2 to 3.5 µm
Product Properties Melting Point
1870 ºC | 3400 ºF
Product Properties Note For Temperature Grade
The temperature grade of Fiberfrax® insulation is determined by irreversible linear change criteria, not product melting point.
Product Properties Recommended Operating Temperature
2850 ºF
Product Properties Specific Gravity
3 g/cm³
Product Properties Specific Heat At 1093 Degree Celsius
1246 J/kg ºC | 0.297 Btu/lb·ºF
Product Properties Temperature Grade
1650 ºC | 3000 ºF
