Fiberglass Concrete Assembly - 21 1/2 in. Inside Depth
Fiberglass Concrete Assembly - 21 1/2 in. Inside Depth
SKU:HAN-e00ba7
Enhance infrastructure with Newbasis PCX™ Fiberglass Concrete Assembly. High strength, meet industry standards. Ideal for institutional use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Fiberglass Concrete Assembly - 21 1/2 in. Inside Depth
$899.99
Quantity: 1
Claim Your Seller Account
Fiberglass Concrete Assembly - 21 1/2 in. Inside Depth
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

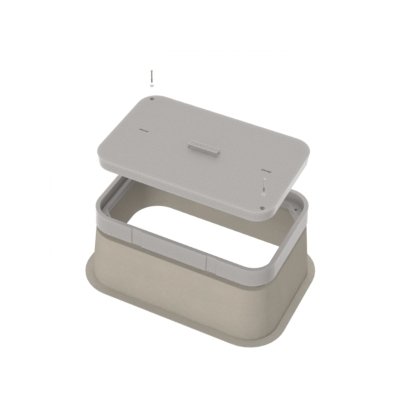

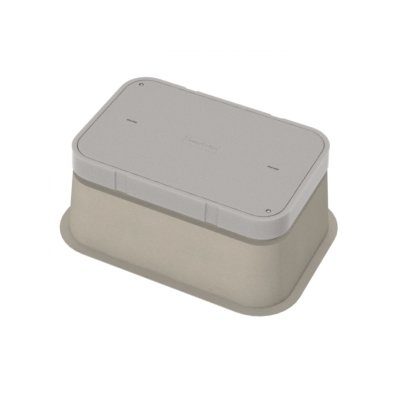

Upgrade your infrastructure with this Newbasis PCX™ Fiberglass Concrete Assembly featuring tapered sides, stainless steel 3/8” hex bolts, and advanced composite materials. With high compressive and flexural strength, this assembly meets industry standards including WUC 3.6 and ANSI/SCTE 77-'T15/20K'. The skid-resistant cover, integrated nameplate options, and integral drain holes ensure durability and functionality for various applications. Suitable for USDA/RUS projects, this assembly is non-metallic, non-conductive, and UV resistant, ideal for institutional installations.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, 2 Racks, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
24 in
Dimensional Attributes Inside Depth
21 1/2 in
Dimensional Attributes Inside Length
45 5/8 in | 53 5/8 in
Dimensional Attributes Inside Width For 45 58 In Length
28 in
Dimensional Attributes Inside Width For 53 58 In Length
35 7/8 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
30 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
377 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
158 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
219 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K''
Specifications Loaded Pallet Weight
1945 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
5
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
