Fiberglass Concrete Assembly - 39 in. Inside Depth
Fiberglass Concrete Assembly - 39 in. Inside Depth
SKU:HAN-4165b7
Durable Fiberglass Concrete Assembly with tapered side, stainless steel hex bolts, and advanced composite material. USDA/RUS approved with customizable nameplates.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Fiberglass Concrete Assembly - 39 in. Inside Depth
$899.99
Quantity: 1
Claim Your Seller Account
Fiberglass Concrete Assembly - 39 in. Inside Depth
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

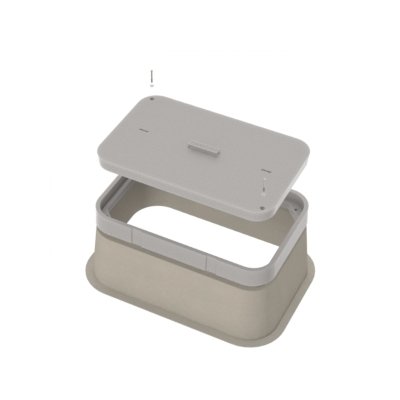

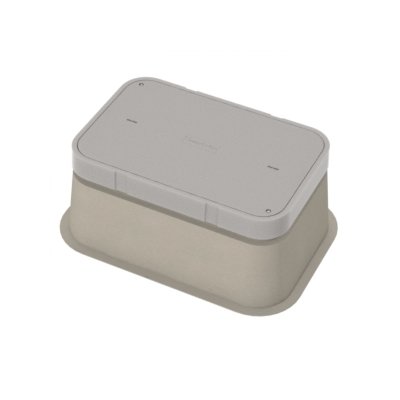

The Fiberglass Concrete Assembly with a 39-inch inside depth by newbasis, PCX™, is a robust and durable solution for handholes, meeting ASTM standards for compressive and flexural strength. This assembly features a tapered side, stainless steel hex bolts, and advanced composite material properties ensuring non-conductivity, UV resistance, and high impact resistance. With a load rating suitable for incidental traffic, this USDA/RUS approved assembly includes customizable nameplates and skid-resistant covers.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
42 in
Dimensional Attributes Inside Clearance Diameter Bottom
48 13/16 in
Dimensional Attributes Inside Clearance Diameter Top
34 1/8 in
Dimensional Attributes Inside Depth
39 in
Features
USDA/RUS ApprovedUL classified polymer concreteDrop-In nameplateShipped assembledSkid resistant cover
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77 - 2010
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Specifications Assembly Weight
299.2 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
119.9 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
179.3 lb
Specifications Diameter
38 in
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
134 MPa
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
116 MPa
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 2010 -''20K/T15''
Specifications Loaded Pallet Weight
1250.5 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
4
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
