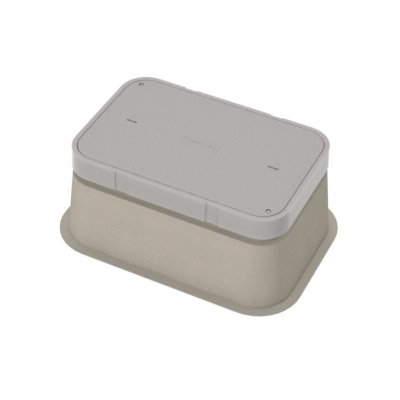

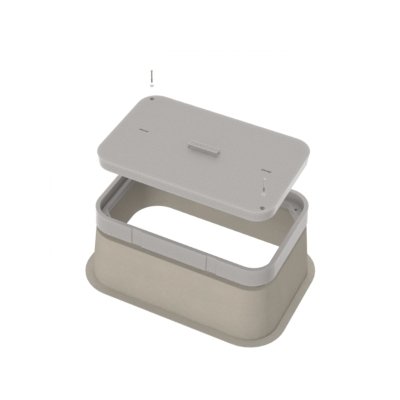

Fiberglass Concrete Assembly - 45 in. Inside Depth

Fiberglass Concrete Assembly - 45 in. Inside Depth

HAN-4e37fa

High-strength Fiberglass Concrete Assembly with customizable nameplates and durable design, USDA/RUS approved.

$2,499.99
$2,499.99
Sale

Initiate Order

Fiberglass Concrete Assembly - 45 in. Inside Depth

Fiberglass Concrete Assembly - 45 in. Inside Depth

$2,499.99

Quantity: 1

Claim Your Seller Account

Fiberglass Concrete Assembly - 45 in. Inside Depth

Fiberglass Concrete Assembly - 45 in. Inside Depth

$2,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your infrastructure with the Fiberglass Concrete Assembly featuring advanced composite materials and high strength to weight ratio. This assembly meets USDA/RUS approval and industry standards like ASTM. With a skid-resistant cover, integral drain holes, and customizable nameplates, it offers durability, non-conductivity, and UV resistance.

Product Specifications

Available Options
Penta Bolts, Telephone EMS, Racks, Knockouts, Pulling Eyes, Slab Top, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
48 in
Dimensional Attributes Inside Depth
45 in
Dimensional Attributes Inside Width For 83 18 In Length Bottom
35 3/8 in
Dimensional Attributes Inside Width For 91 12 In Length Top
43 1/4 in
Dimensional Attributes Length
96 in
Dimensional Attributes Width
48 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterIrrigation Control ValveBroadbandTrafficCATVTraffic SignalCommunications
Specifications Assembly Weight
1135 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
567 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
568 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
134 MPa
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
116 MPa
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6 -"20K"
Specifications Loaded Pallet Weight
1200 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
1
Specifications Side
Straight
Specifications Type
Fiberglass Concrete Assemblies
