Fine Blanking Disc Brush - 320 Grit, 0.022" Filament, 25mm Trim Length
Fine Blanking Disc Brush - 320 Grit, 0.022" Filament, 25mm Trim Length
SKU:ABR-ddba48
Achieve superior surface finishing with Tanis® Fine Blanking Disc Brush - 320 Grit, 0.022" Filament, 25mm Trim Length. Ideal for deburring and polishing on fine-blanked parts.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Fine Blanking Disc Brush - 320 Grit, 0.022" Filament, 25mm Trim Length
$34.99
Quantity: 1
Claim Your Seller Account
Fine Blanking Disc Brush - 320 Grit, 0.022" Filament, 25mm Trim Length
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

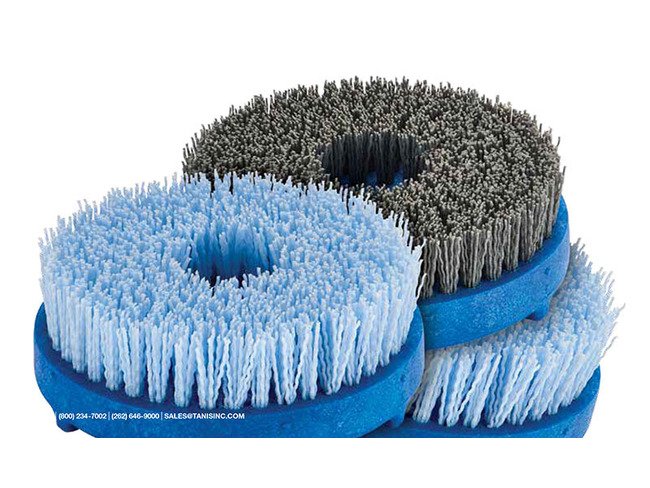

The Tanis® Fine Blanking Disc Brush is expertly crafted for stationary finishing machines, catering specifically to European models like Volbhag, Niederberger, and Peter Wolters. This abrasive nylon brush excels in deburring, edge radiusing on fine-blanked parts, and polishing machined surfaces. With a Brush Diameter of 6 inches, 320 grit Size, 0.022-inch Filament Diameter, and 25mm Trim Length, it ensures precision and efficiency in surface finishing applications.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35055For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Drive Arbor Part Number - 35060For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 3.Note - Use with 6" teardrop pattern disc brushes.Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35090For Brush Diameter - 6 in.Ring Inside Diameter (ID) - 5-1/8 in.Ring Outside Diameter (OD) - 5-5/8 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Note
Additional diameters and grits available upon request.
Specifications Arbor Hole Size
25 mm
Specifications Block Thickness
1 in
Specifications Brush Diameter
6 in
Specifications Filament Diameter
0.022 in
Specifications Material
Silicon Carbide
Specifications Maximum Speed
3000 rpm
Specifications Peripheral Angular Speed
23.6 rpm
Specifications Size
320 grit
Specifications Trim Length
25 mm
