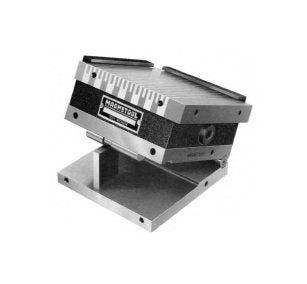

Fine Pole Compound Angle Magnetic Sine Plate
Fine Pole Compound Angle Magnetic Sine Plate
SKU:FIN-3a2484
Achieve precise angular setups with the durable Fine Pole Magnetic Sine Plate, designed to hold workpieces securely with high-power Ceramic magnets.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Fine Pole Compound Angle Magnetic Sine Plate
$799.99
Quantity: 1
Claim Your Seller Account
Fine Pole Compound Angle Magnetic Sine Plate
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Fine Pole Compound Angle Magnetic Sine Plate by MAGNETOOL offers precise angular setups with high-power Ceramic magnets ensuring consistent strength. The top plates, made from SAE .8620 Steel Carburized, provide exceptional durability. With a surface area of 144 in² and a standard pole spacing of 3/8 in, this plate can securely hold various workpieces. It complies with SAE standards, featuring a compound angle design for versatile applications. Tolerance in squareness, parallelism, and between rolls is meticulously maintained according to industry standards.
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.
Specifications Height
6 5/8 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
10.000
Specifications Standards
SAE
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
144 in²
Specifications Type
Compound Angle
Specifications Weight
200 lb
