Fine Pole Compound Angle Magnetic Sine Plate
Fine Pole Compound Angle Magnetic Sine Plate
SKU:FIN-3f79d7
Achieve precise angular setups with the Fine Pole Compound Angle Magnetic Sine Plate. Durable construction, high accuracy, and reliable magnetic grip make it ideal for a range of applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Fine Pole Compound Angle Magnetic Sine Plate
$599.99
Quantity: 1
Claim Your Seller Account
Fine Pole Compound Angle Magnetic Sine Plate
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

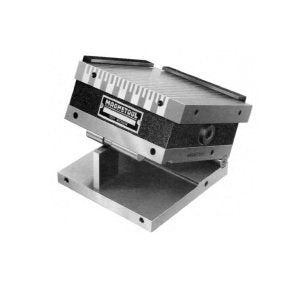

The Fine Pole Compound Angle Magnetic Sine Plate by MAGNETOOL is a precision tool designed for quick and precise angular setups. Crafted with high-power Ceramic magnets, this plate ensures stable and secure positioning. The top plates are constructed from SAE .8620 Steel Carburized for durability. With standard pole spacing of 3/8 in and a material hardness of 58 to 60 Rockwell C, this plate offers exceptional accuracy with a tolerance of .0002 in. Ideal for holding thin to thick pieces, this plate is a reliable choice for accurate machining setups in various applications.
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.
Specifications Height
5 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
5000 - 5.000
Specifications Standards
SAE
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
36 in²
Specifications Tolerance
.0002 in
Specifications Type
Compound Angle
Specifications Weight
37 lb
