Fine Pole Compound Angle Permanent Magnetic Sine Plate - SAE .8620 Steel Carburized
Fine Pole Compound Angle Permanent Magnetic Sine Plate - SAE .8620 Steel Carburized
SKU:FIN-99f164
High-precision Compound Angle Sine Plate for accurate angular setups, made of durable SAE .8620 Steel Carburized. Ideal for quick setups.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Fine Pole Compound Angle Permanent Magnetic Sine Plate - SAE .8620 Steel Carburized
$499.99
Quantity: 1
Claim Your Seller Account
Fine Pole Compound Angle Permanent Magnetic Sine Plate - SAE .8620 Steel Carburized
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

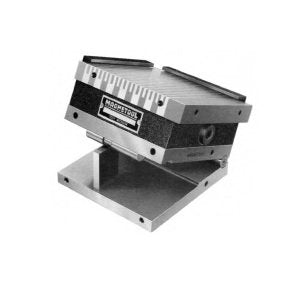

The Fine Pole Compound Angle Permanent Magnetic Sine Plate is a precision tool designed for quick and accurate angular setups. Made with high-power Ceramic magnets, this MAGNETOOL ensures a secure hold without power loss. The top plates, comprised of steel and stainless steel furnace brazed into a solid plate, offer exceptional durability. With a Surface Area of 108 in², Sine range from 5.000 to 15.000, and Material Hardness of 58 to 60 Rockwell C, this SAE .8620 Steel Carburized Sine Plate meets rigorous standards for precision and reliability.
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.
Specifications Height
7 1/2 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
5.000 - 15.000
Specifications Standards
SAE
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
108 in²
Specifications Tolerance
.0004 in
Specifications Type
Compound Angle
Specifications Weight
184 lb
