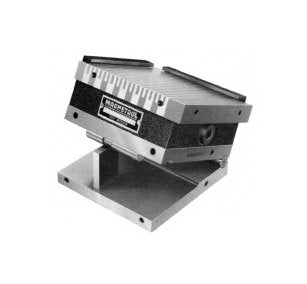

Fine Pole Single Angle Magnetic Sine Plate

Name: Fine Pole Single Angle Magnetic Sine Plate
Brand: Magnetool, Inc.
SKU: FIN-269caf
Price: 749.99 USD
Availability: OutOfStock

SKU:FIN-269caf

Achieve precise angular setups with the Fine Pole Single Angle Magnetic Sine Plate, designed for accuracy and durability in institutional environments.

$749.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Fine Pole Single Angle Magnetic Sine Plate by MAGNETOOL is engineered for precision angular setups, featuring a top plate constructed from steel and stainless steel, furnace brazed into a single solid plate. Equipped with high power Ceramic magnets, this Sine Plate ensures secure holding power without loss. With standard pole spacing of 3/8 in and a tolerance of .0004 in, it offers exceptional accuracy and reliability. Made of SAE .8620 Steel Carburized, hardened to 58-60 Rockwell C hardness, this plate provides durability and longevity. Ideal for institutional and government procurement, meeting SAE standards for quality and performance.

Product Specifications

Additional Information 0

Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.

Specifications Height

5 3/4 in

Specifications Material Hardness

58 to 60 Rockwell C

Specifications Plate And Roll Material

SAE .8620 Steel Carburized

Specifications Sine

5.000

Specifications Standards

SAE

Specifications Standard Pole Spacing

3/8 in

Specifications Surface Area

108 inÂ²

Specifications Tolerance

.0004 in

Specifications Type

Single Angle

Specifications Weight

148 lb

Fine Pole Single Angle Magnetic Sine Plate
