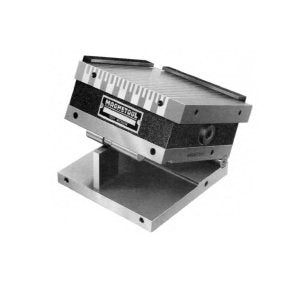

Fine Pole Single Angle Magnetic Sine Plate

Name: Fine Pole Single Angle Magnetic Sine Plate
Brand: Magnetool, Inc.
SKU: FIN-44c104
Price: 879.99 USD
Availability: OutOfStock

SKU:FIN-44c104

Achieve precise angular setups with the Fine Pole Single Angle Magnetic Sine Plate by MAGNETOOL. Features high power magnets and SAE .8620 Steel Carburized material for durability and precision.

$879.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Fine Pole Single Angle Magnetic Sine Plate by MAGNETOOL is engineered for precise angular setups, featuring top plates made of steel and stainless steel furnace brazed into a solid plate. With high power Ceramic magnets ensuring constant magnetism, this Sine Plate offers a standard pole spacing of 3/8 in. The SAE .8620 Steel Carburized material provides exceptional durability and hardness, meeting standards of 58 to 60 Rockwell C. Capable of holding thin to thick pieces, this plate is a reliable choice for accurate machining setups.

Product Specifications

Additional Information 0

Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.

Specifications Height

4 3/4 in

Specifications Material Hardness

58 to 60 Rockwell C

Specifications Plate And Roll Material

SAE .8620 Steel Carburized

Specifications Sine

10.000

Specifications Standards

SAE

Specifications Standard Pole Spacing

3/8 in

Specifications Surface Area

72 inÂ²

Specifications Tolerance

.0003 in

Specifications Type

Single Angle

Specifications Weight

65 lb

Fine Pole Single Angle Magnetic Sine Plate
