Fine Pole Single Angle Magnetic Sine Plate
Fine Pole Single Angle Magnetic Sine Plate
SKU:FIN-b87d71
Achieve precise angular setups effortlessly with the Fine Pole Single Angle Magnetic Sine Plate by MAGNETOOL.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Fine Pole Single Angle Magnetic Sine Plate
$899.99
Quantity: 1
Claim Your Seller Account
Fine Pole Single Angle Magnetic Sine Plate
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

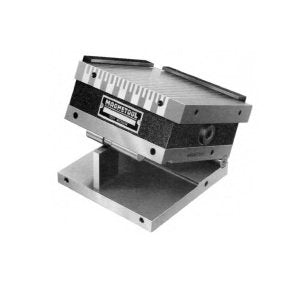

The Fine Pole Single Angle Magnetic Sine Plate by MAGNETOOL is a precision tool designed for quick and accurate angular setups. Made with high power Ceramic magnets that never lose strength, this plate features a top plate constructed from steel and stainless steel furnace brazed into a single solid unit. With a standard pole spacing of 3/8 in and a versatile pole spacing of 1/8 in available, this plate can securely hold thin to thick pieces. It offers a Sine of 15.000, a Surface Area of 108 in², and adheres to stringent material standards with SAE .8620 Steel Carburized construction. Ensure precise setups with ease using this durable and reliable magnetic sine plate.
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.
Specifications Height
5 3/4 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
15.000
Specifications Standards
SAE
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
108 in²
Specifications Tolerance
.0004 in
Specifications Type
Single Angle
Specifications Weight
148 lb
