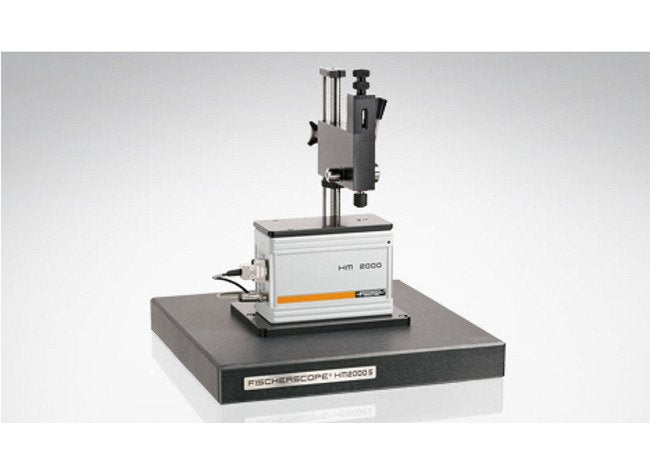

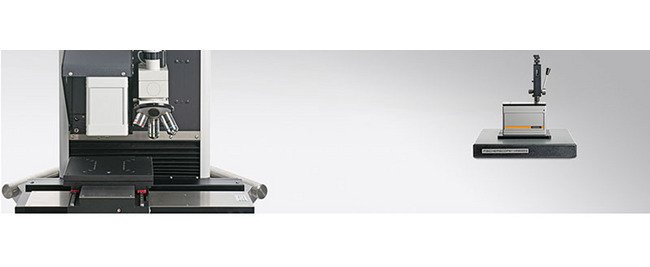

The FISCHERSCOPE® HM2000 S is ideally suited for the manual measurement of mechanical and elastic material properties in the inspection of in-bound goods or the testing of fabricated goods. Uncomplicated construction and high quality components make this an outstanding instrument for measuring nanoindentation. Without requiring special sample preparation, test specimens are positioned by hand and material parameters such as Martens hardness, Vickers hardness, elastic modulus of indentation or creep are measured quickly and accurately. Fischer places value on measurement instruments that offer a long service life: if your requirements for measurement technology change, the entry-level model for nanoindentation measurement can be upgraded to the semi-automatic variant, HM2000.
Product Specifications
Additional Information
The Fischerscope® HM2000 S is a cost-effective nanoindentation measuring system.
Applications
Nanoindentation measurement of samples with simple geometriesDetermination of the plastic and elastic properties of paint coatings to assess the hardness, elasticity and stability of the painted surface, for example for quality control in the automotive industryDetermination of atmospheric influences on paint coatingsTesting of the wear-resistance of thin anodized layers (hard anodizing on aluminum profiles)Control of decorative and functional electroplated layersTesting of PVD and CVD layersProving the scratch and abrasion resistance of coatingsTesting of DLC layers
Features
Determination of numerous plastic and elastic properties such as indentation hardness (convertible into Vickers hardness), modulus of indentation and creepCustomer-specific indenters on requestMeasuring head suitable for the measurement of creep at constant temperatures over several hoursEquipped with high-performance WIN-HCU software, which supports intuitive operation of the nanoindentation and the evaluation of numerous material parameters
Optional Accessories
Enclosed measurement chamber to avoid external influences such as air streams from air conditioning unitsNatural hard stone plate with damper feet to reduce vibration influences
Specifications Indenters
Berkovich | Carbide Ball | Vickers
Specifications Measurement And Computation Of Material Parameter
American Society for Testing and Materials (ASTM E 2546) | European Standards International Organization for Standardization (DIN EN ISO 14577-1)
