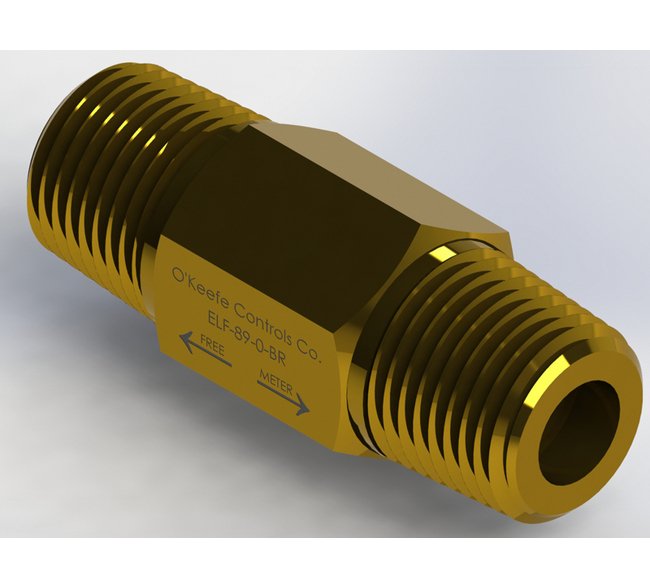

Fixed Flow Controls - Ball Type NPT Nipple, Brass, 1/4" NPT
Fixed Flow Controls - Ball Type NPT Nipple, Brass, 1/4" NPT
SKU:FLO-453d5e
Reliable Fixed Flow Controls - Ball Type NPT Nipple for precise flow regulation in liquids and gases.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Fixed Flow Controls - Ball Type NPT Nipple, Brass, 1/4" NPT
$39.99
Quantity: 1
Claim Your Seller Account
Fixed Flow Controls - Ball Type NPT Nipple, Brass, 1/4" NPT
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

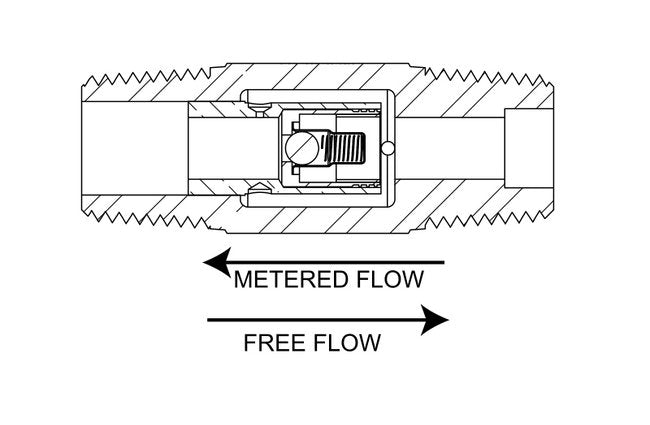

The Fixed Flow Controls - Ball Type NPT Nipple features a parallel arrangement of a ball check valve and precision orifice, providing metered flow in one direction and free flow in the other. Crafted from durable brass with a 304 SS ball, this product ensures reliable performance for both liquids and gases. With a cracking pressure of 15 psig and a maximum operating pressure of 200 psig, it offers high-pressure capacity and tamperproof orifice for long-term use. Suitable for air flow ranging from 809 to 1650 ft³/h and water flow from 1.9 to 3.9 gpm, this product is ideal for diverse industrial applications.
Product Specifications
Dimensions Orifice Diameter
0.0700 in
Dimensions Total Length
1.91 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
809 to 1650 ft³/h
Flow Data Water Flow At 100 Psig
1.9 to 3.9 gpm
Specifications Assembly Forward Cv
0.301
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.191
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
15 psig
Specifications Cv Ratio Forward Cv Return Cv
2.74
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
70
Specifications Orifice Cv Return
0.11
Specifications Screened
None
