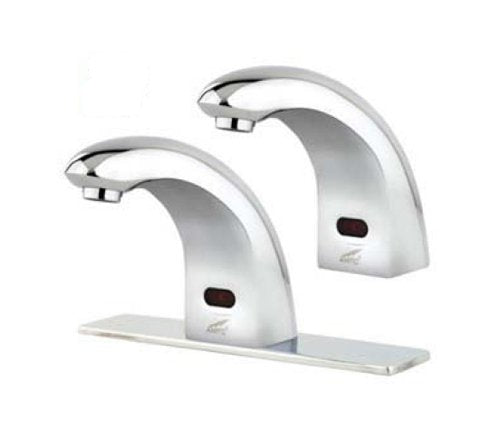

FIXEDFLO® AEF-300FF Automatic Faucet Valve
FIXEDFLO® AEF-300FF Automatic Faucet Valve
SKU:AUT-b1e240
Experience ultimate water savings with the FIXEDFLO® AEF-300FF Automatic Faucet Valve. ADA compliant, durable, and efficient.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
FIXEDFLO® AEF-300FF Automatic Faucet Valve
$249.99
Quantity: 1
Claim Your Seller Account
FIXEDFLO® AEF-300FF Automatic Faucet Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FIXEDFLO® AEF-300FF Automatic Faucet Valve revolutionizes water conservation in public facilities. With non-adjustable flow rates of 0.4gpm or 0.5gpm, this sensor faucet system ensures ultimate efficiency. Featuring multiple power options, including battery and hydro-generator, it offers easy installation, hands-free operation, and ADA compliance. The solid brass spout, patented BRV®, and gear motor drive enhance durability and performance, making it an ideal choice for institutions prioritizing water-saving solutions.
Product Specifications
Features Features
1 Hole Center Set Mounting | 2 Second (s) Shut Off Delay | 3 Hole 8 Inch (in) Center Set Mounting Using Cover Plate | Adjustable Digital Sensing Range: 2 Inch (in) (55 Millimeter (mm)) - 6 Inch (in) (150 Millimeter (mm)) | Americans with Disabilities Act (ADA) Compliant | Automatic Water Flow Shut-Off: 50 Second (s) | Chrome Plated Solid Brass Spout (Standard) | Easy Battery Replacement - No Water Shut Off Necessary | Easy Installation | Hands Free Infrared Sensor Activation | Less Than 0.25% Lead Content by Weighted Average | Operating Water Pressure: 10 to 125 Pound per Square Inch (PSI) | Patented BRV® and Gear Motor Drive | Powered by Four (4) C-Cell Batteries (Included) | Removable Filtering System (Easily Cleaned)
Specifications Automatic Shut Off Time
50 sec
Specifications Battery Life
400,000 cycles | 3 year
Specifications Battery Type
Four (4) C-Cell
Specifications Depth
90 mm | 3.55 in
Specifications Flow Rate
0.4 gpm | 0.5 gpm | 1.5 L/min | 1.9 L/min
Specifications Low Battery Indicator
Solid Red Light on Sensor
Specifications Mounting Applications
1 Hole Center Set | 3 Hole 8 Inch (in) Center Set (using cover plate)
Specifications Operation
Automatic (Gear Motor Drive)
Specifications Optional Alternate Power
Plug-in 6-Volt (V) AC Power Adapter | Plug-in Hydro-power Electric Generator
Specifications Overall Height
141 mm | 5.56 in
Specifications Overall Length
192 mm | 7.56 in
Specifications Overall Width
160 mm | 6.3 in
Specifications Pop Up Drain Rod
None
Specifications Sensing Range
55 to 150 mm | 2 to 6 in
Specifications Sensor Location
Base of Spout
Specifications Sensor Range Setting
Digital Push Button
Specifications Sensor Type
Infrared
Specifications Shut Off Delay Time
2 sec
Specifications Spout
Solid Brass Spout
Specifications Supply Inlet Size
1/2 in
Specifications Temperature Control
None (use Thermostatic Mixing Valve (TMV) to mix hot/cold water)
Specifications Working Water Pressure
10 to 125 psi
