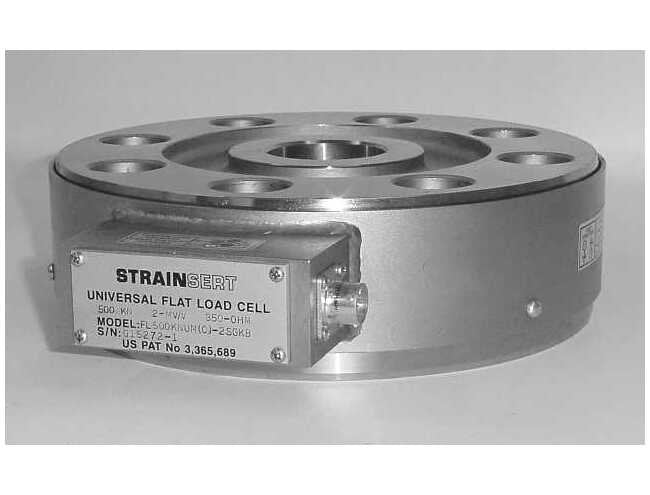

The FL100UM(C)-2SGKB Universal Load Cells are versatile devices designed to measure forces in both tension and compression accurately. With a load capacity of 35,000 lb (156 kN), these load cells feature a low profile, rugged construction, and compact design. They offer high sensitivity, pressure compensation, and sealed strain gages for reliable performance in diverse applications. With precise non-linearity of ±0.25% FS for general purposes and ±0.10% FS for precision, these load cells provide consistent and accurate measurements. Ideal for industrial and institutional settings requiring high-quality load sensing technology.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Drawing Dimensional Drawing
Metric Universal Load Cell
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal in tension and compression are obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Specifications A Diameter
49.2 mm
Specifications B Diameter
85.7 mm
Specifications C Diameter
149 mm
Specifications D Diameter
156 mm
Specifications F Height
38.1 mm
Specifications G Width
95.3 mm
Specifications H Height
41.3 mm
Specifications K Inside Diameter
12.30 mm
Specifications K Outside Diameter
18.26 mm
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
35,000 lb | 156 kN
Specifications L Diameter
114 mm
Specifications Material Of Construction
Alloy Steel
Specifications N Depth Of Hole
12.7 mm
