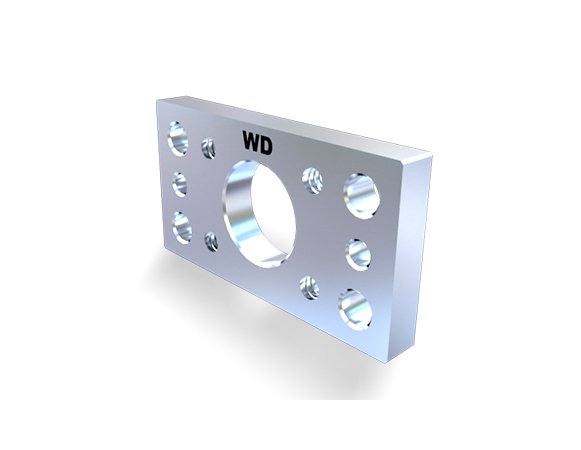

Flange Plates
Flange Plates
SKU:COM-717db8
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Flange Plates
$49.99
Quantity: 1
Claim Your Seller Account
Flange Plates
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

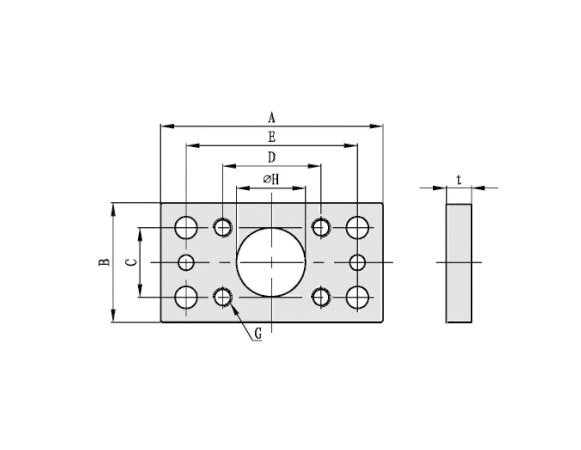

Product Specifications
Specifications Applicable Products
WD053
Specifications Dimension A
90 mm
Specifications Dimension C
30 mm
Specifications Dimension E
70 mm
Specifications Dimension F
8.5 mm
Specifications Dimension G
M8 mm
Specifications Dimension H
30 mm
Specifications Dimension T
10 mm
Specifications Outside Diameter
40 mm
Specifications Overall Bearing Width
50 mm
Specifications Reference Code Germany
APS
Specifications Reference Code Italy
8.0288
Specifications Type
A
