Flange Plates
Flange Plates
SKU:COM-fb0a38
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Flange Plates
$49.99
Quantity: 1
Claim Your Seller Account
Flange Plates
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ready to Grow Without Cash Flow Constraints?

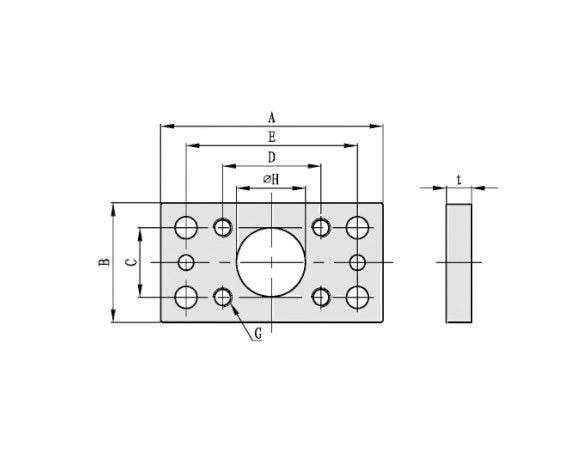

Product Specifications
Specifications Applicable Products
WD063 | WD080
Specifications Dimension A
200 mm
Specifications Dimension C
100 mm
Specifications Dimension E
160 mm
Specifications Dimension F
17 mm
Specifications Dimension G
M16 mm
Specifications Dimension H
60 mm
Specifications Dimension T
20 mm
Specifications Outside Diameter
100 mm
Specifications Overall Bearing Width
150 mm
Specifications Reference Code Germany
AP6
Specifications Type
A
