Flanged Aluminum Collar - 3/16 Inch Diameter
Flanged Aluminum Collar - 3/16 Inch Diameter
SKU:FLA-7a4289
Premium Flanged Aluminum Collar - 3/16 in diameter, designed for durability, precision grip, and corrosion resistance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Flanged Aluminum Collar - 3/16 Inch Diameter
$29.99
Quantity: 1
Claim Your Seller Account
Flanged Aluminum Collar - 3/16 Inch Diameter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

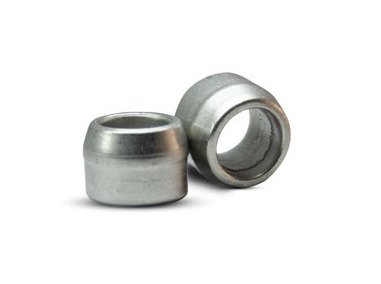

Enhance your fastening solutions with our Flanged Aluminum Collar in 3/16-inch diameter. Crafted from AL-6061 Aluminum, this collar offers maximum hole diameter of 0.311 inches, suitable for various applications. With a natural finish and zinc coating, it ensures durability and corrosion resistance. The collar's flanged head shape provides a secure grip, meeting grip number standards for different materials. Whether for consumer or institutional use, this collar guarantees precision and reliability.

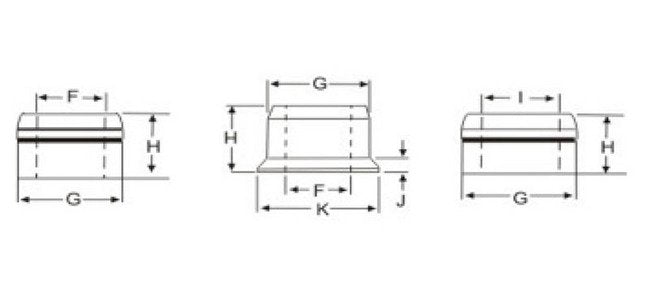

Product Specifications
Note Note
When using Flange collars, and "J" dimension to thickness of material being fastened to determine grip number.
Technical Specs Brands
Ornit
Technical Specs Coating
Zinc
Technical Specs Diameter
3/16 in
Technical Specs Diameter F
0.187 to 0.196 in
Technical Specs Finish
Natural
Technical Specs Head Shape
Flanged
Technical Specs Length H
0.280 - 0.250 in
Technical Specs Material
AL-6061 Aluminum (Annealing)
Technical Specs Maximum Dimension J
0.062 - 0.031 in
Technical Specs Maximum Dimension K
0.391 - 0.359 in
Technical Specs Maximum Hole Diameter
0.311 in
Technical Specs Minimum Hole Diameter
0.304 in
Technical Specs Weight Per 1000 Pieces
0.53 kg
