Flanged Fluoropolymer (PTFE) Heaters - 6FLX Series, 6"
Flanged Fluoropolymer (PTFE) Heaters - 6FLX Series, 6"
SKU:HEA-e437f9
Experience superior chemical resistance and outstanding performance with 6FLX Series Fluoropolymer (PTFE) Heaters.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Flanged Fluoropolymer (PTFE) Heaters - 6FLX Series, 6"
$899.99
Quantity: 1
Claim Your Seller Account
Flanged Fluoropolymer (PTFE) Heaters - 6FLX Series, 6"
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

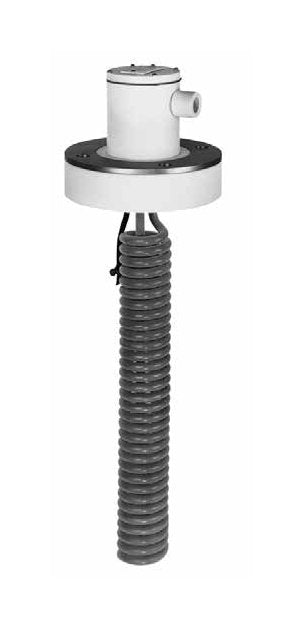

The 6FLX Series 6" 150 LB. Style Three Element Fluoropolymer (PTFE) Flanged Heaters by Process Technology offer superior chemical resistance, rugged construction, and outstanding performance. With heavy wall fluoropolymer covered stainless steel elements, these heaters ensure minimal permeation and a long service life. The corrosion-resistant head and safety features like a thermal protector and grounded construction make them ideal for various solutions. Certified CE compliant, these heaters come in single or three-phase options, with different thermal overload protection choices to suit specific temperature requirements.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and reduces the need for gas purge systems. Guaranteed 100% pinhole free.OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch (1.5 w/cm2) uses minimal space and ensure long service life.CORROSION RESISTANT HEAD: Polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Resettable P2 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: CE compliant (except 600 volts).SIZES: 1,000 watts to 18,000 watts.VOLTAGES: 120 to 600 volts. 3FLX single phase only. 6FLX single or three phase.OPTIONS AVAILABLE (consult factory):P8: Type-J thermocouple for solutions up to 210°F (99°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions and technical acids.Temperature and level controls sized to match the heater (sold separately).
Note Note
Gasket and bolts are not provided. Intended for horizontal installation only.
Specifications Certifications
CE
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable Fuse (Type-J TC) thermal protector: P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector: P8: for solutions up to 210°F.
Specifications Overall Length
32 " | 813 mm
Specifications Phase
Single | Three (Standard)
Specifications Shipping Weight
75 Pound
Specifications Volts
240 V
Specifications Watts
15000 W
Specifications Weight
75.0 lbs | 34.0 kg
