Flanged Plastic Cap for Standard Straight Threads

Name: Flanged Plastic Cap for Standard Straight Threads
Brand: MOCAP LLC
SKU: FLA-2c06eb
Price: 29.99 USD
Availability: OutOfStock

SKU:FLA-2c06eb

Protect and verify standard straight threads with ease using RoHS-compliant Flanged Plastic Caps in various sizes by MOCAP.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

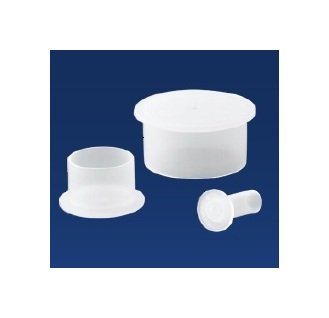

Safeguard your standard straight threads with MOCAP Flanged Plastic Caps. Constructed from RoHS-compliant polyethylene, these caps are easily removable by hand or machinery, featuring an inner diameter of 1.426 inches. Available in various sizes to fit different thread specifications. Enhance protection and visual verification with these durable flanged caps.

Product Specifications

Features 0

Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings

Manufacturing Notes 0

MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Box Quantity

1500

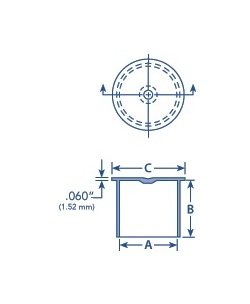

Specifications Flange Outer Diameter Dimension C

1.690 in | 42.9 mm

Specifications Flange Thickness

0.060 in | 1.52 mm

Specifications Inside Diameter Dimension A

1.426 in | 36.2 mm

Specifications Inside Length Dimension B

0.750 in | 19.1 mm

Specifications Material

Polyethylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

300

Specifications Standards

RoHS Compliant

Specifications To Fit Standard Thread Size

1 7/16 in

Flanged Plastic Cap for Standard Straight Threads
