Flanged Plastic Cap for Straight Threads - Thread Size 11/16 in
Flanged Plastic Cap for Straight Threads - Thread Size 11/16 in
SKU:FLA-16af45
Protect and verify standard straight threads with this flanged plastic cap for easy assembly and removal. RoHS compliant, various sizes available.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Flanged Plastic Cap for Straight Threads - Thread Size 11/16 in
$25.99
Quantity: 1
Claim Your Seller Account
Flanged Plastic Cap for Straight Threads - Thread Size 11/16 in
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

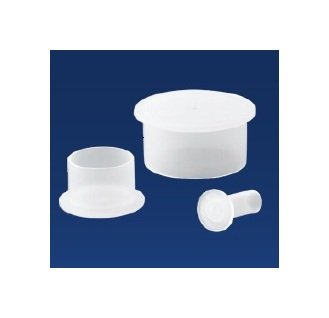

The Flanged Plastic Cap for Straight Threads is a part of the MOCAP FCS Series, crafted from durable polyethylene material. Designed to protect standard straight threads, it features an inside diameter of 0.676 in and a flange outer diameter of 0.940 in, ensuring a secure fit and easy removal by hand or automated equipment. Ideal for visual verification of threads or o-rings, these caps are flanged for added convenience and come in various sizes to accommodate different thread dimensions. With RoHS compliance and options for Mini-Pack and Micro-Pack quantities, these caps offer versatility and convenience for your thread protection needs.
Product Specifications
Features 0

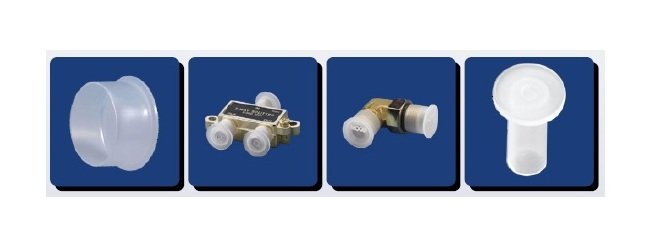

Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings
Manufacturing Notes 0
MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
5000

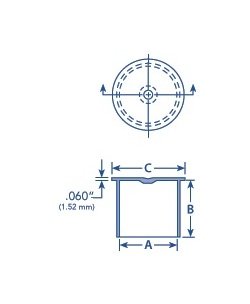

Specifications Flange Outer Diameter Dimension C
0.940 in | 23.9 mm
Specifications Flange Thickness
0.060 in | 1.52 mm
Specifications Inside Diameter Dimension A
0.676 in | 17.2 mm
Specifications Inside Length Dimension B
0.500 in | 12.7 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Standards
RoHS Compliant
Specifications To Fit Standard Thread Size
11/16 in
