Flanged Polyethylene Caps for Straight Threads
Flanged Polyethylene Caps for Straight Threads
SKU:FLA-009b66
Flanged Polyethylene Caps for Straight Threads, easy to install and remove, visually confirm threads. Available in various sizes. RoHS compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Flanged Polyethylene Caps for Straight Threads
$59.99
Quantity: 1
Claim Your Seller Account
Flanged Polyethylene Caps for Straight Threads
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

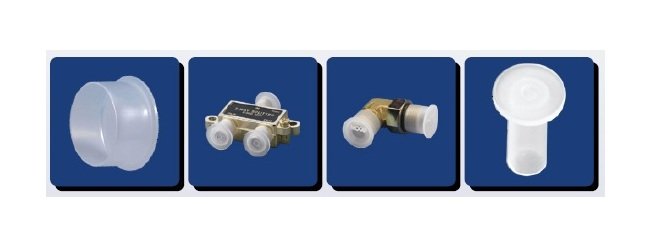

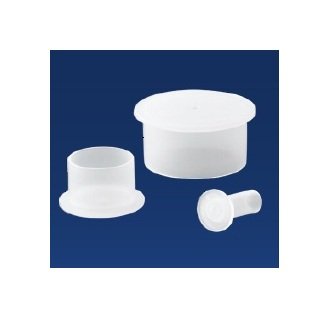

Protect and verify standard straight threads with MOCAP FCS Series Flanged Polyethylene Caps. These caps allow visual confirmation of threads or o-ring and are easy to install or remove by hand or automated equipment. Available in sizes from 7/16 in to 1 5/8 in, these caps are RoHS compliant and ideal for thread protection or capping.
Product Specifications
Features 0
Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings
Manufacturing Notes 0
MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
5000

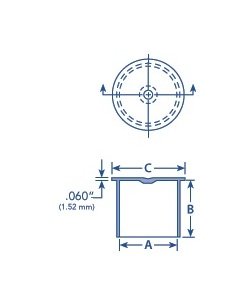

Specifications Flange Outer Diameter Dimension C
1.060 in | 26.9 mm
Specifications Flange Thickness
0.060 in | 1.52 mm
Specifications Inside Diameter Dimension A
0.802 in | 20.4 mm
Specifications Inside Length Dimension B
0.560 in | 14.2 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Standards
RoHS Compliant
Specifications To Fit Standard Thread Size
13/16 in
