Flanged Polyethylene Caps for Straight Threads

Name: Flanged Polyethylene Caps for Straight Threads
Brand: MOCAP LLC
SKU: FLA-9b7d63
Price: 49.99 USD
Availability: OutOfStock

SKU:FLA-9b7d63

Durable polyethylene caps for standard straight threads, easy to use and RoHS compliant. Available in various sizes.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

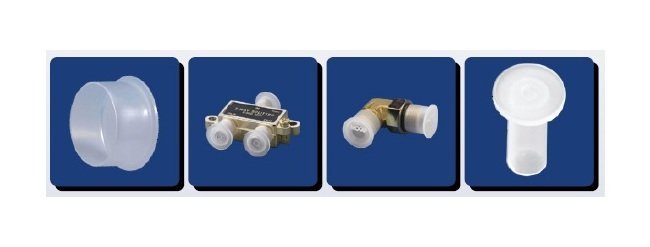

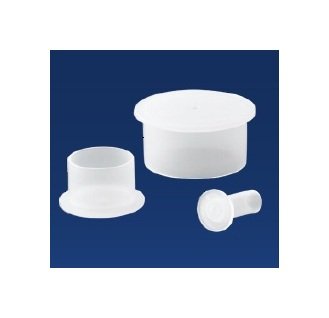

Protect standard straight threads with MOCAP FCS Series flanged polyethylene caps. Easy to assemble or remove by hand or automated equipment. These caps, available in various sizes, feature a natural color for easy verification. Ideal for thread protection or as end caps, meeting RoHS compliance standards.

Product Specifications

Features 0

Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings

Manufacturing Notes 0

MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Box Quantity

2000

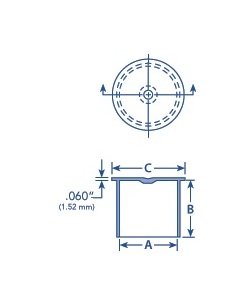

Specifications Flange Outer Diameter Dimension C

1.440 in | 36.6 mm

Specifications Flange Thickness

0.060 in | 1.52 mm

Specifications Inside Diameter Dimension A

1.175 in | 29.8 mm

Specifications Inside Length Dimension B

0.750 in | 19.1 mm

Specifications Material

Polyethylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

400

Specifications Standards

RoHS Compliant

Specifications To Fit Standard Thread Size

1 3/16 in
