Flanged Polyethylene Plastic Cap for 1 1/16" Straight Threads

Name: Flanged Polyethylene Plastic Cap for 1 1/16" Straight Threads
Brand: MOCAP LLC
SKU: FLA-2bb061
Price: 29.99 USD
Availability: OutOfStock

SKU:FLA-2bb061

Protect and verify 1 1/16" straight threads with this flanged polyethylene plastic cap, offering easy assembly and removal.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Flanged Polyethylene Plastic Cap for 1 1/16" Straight Threads by MOCAP is expertly designed to provide superior protection for standard straight threads. The natural color allows for easy visual inspection of threads or o-rings. With an inside diameter of 1.051 inches, flange outer diameter of 1.310 inches, and RoHS compliance, this cap ensures a secure fit and reliable performance. Whether for manual or automated assembly, this cap's flanged design enables effortless installation and removal, making it ideal for various industrial applications.

Product Specifications

Features 0

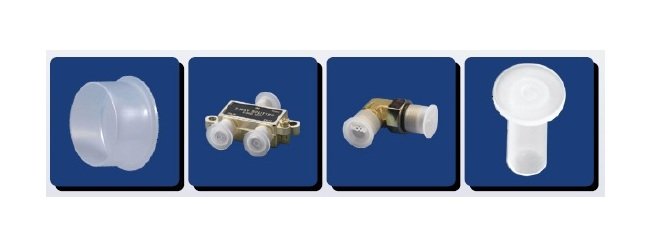

Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings

Manufacturing Notes 0

MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Box Quantity

2400

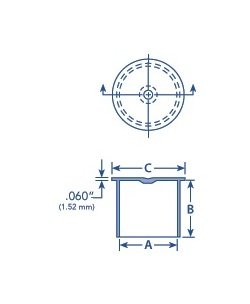

Specifications Flange Outer Diameter Dimension C

1.310 in | 33.3 mm

Specifications Flange Thickness

0.060 in | 1.52 mm

Specifications Inside Diameter Dimension A

1.051 in | 26.7 mm

Specifications Inside Length Dimension B

0.750 in | 19.1 mm

Specifications Material

Polyethylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

480

Specifications Standards

RoHS Compliant

Specifications To Fit Standard Thread Size

1 1/16 in
