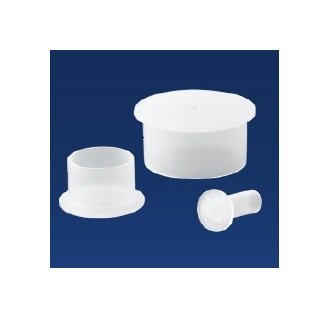

Flanged Polyethylene Plastic Cap for Standard Straight Threads

Name: Flanged Polyethylene Plastic Cap for Standard Straight Threads
Brand: MOCAP LLC
SKU: FLA-919804
Price: 35.99 USD
Availability: OutOfStock

SKU:FLA-919804

Protect and preserve standard straight threads with durable Flanged Polyethylene Plastic Caps by MOCAP. Easy to install, visually inspect, and remove. Various sizes available.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Flanged Polyethylene Plastic Caps for Standard Straight Threads by MOCAP are expertly designed to safeguard standard straight threads with precision and reliability. Crafted from durable polyethylene material, these caps feature a natural color for effortless visual inspection of threads or o-ring compatibility. Easily attach or detach them by hand or automated equipment. Available in various sizes accommodating standard thread sizes from 7/16 in through 1 5/8 in. Ideal for protecting threads, these caps offer ease of assembly and removal, ensuring enhanced thread longevity and performance.

Product Specifications

Features 0

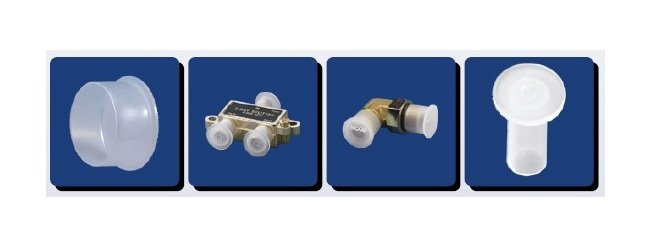

Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings

Manufacturing Notes 0

MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Box Quantity

1800

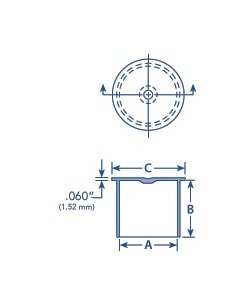

Specifications Flange Outer Diameter Dimension C

1.560 in | 39.6 mm

Specifications Flange Thickness

0.060 in | 1.52 mm

Specifications Inside Diameter Dimension A

1.298 in | 33.0 mm

Specifications Inside Length Dimension B

0.750 in | 19.1 mm

Specifications Material

Polyethylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

360

Specifications Standards

RoHS Compliant

Specifications To Fit Standard Thread Size

1 5/16 in
