Flanged Polyethylene Plastic Caps for Standard Straight Threads
Flanged Polyethylene Plastic Caps for Standard Straight Threads
SKU:FLA-4611e4
Protect and seal standard straight threads with ease using these flanged polyethylene caps. Available in various sizes and compliant with RoHS standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Flanged Polyethylene Plastic Caps for Standard Straight Threads
$89.99
Quantity: 1
Claim Your Seller Account
Flanged Polyethylene Plastic Caps for Standard Straight Threads
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

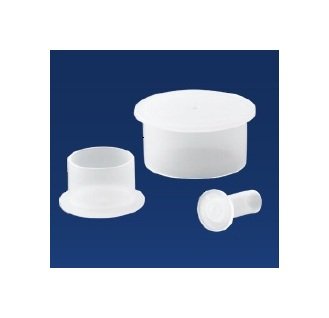

The Flanged Polyethylene Plastic Caps for Standard Straight Threads by MOCAP offer reliable protection for straight threads with their durable polyethylene material. Designed in a natural color for easy thread or o-ring visualization, these caps are flanged for effortless assembly and removal by hand or automated equipment. Available in various sizes to fit 7/16 in through 1 5/8 in threads, these caps also come in Micro-Pack and Mini-Pack quantities for convenience. Ideal as thread protectors or end caps, these caps meet RoHS compliance standards and are part of a series that caters to Standard Straight Threads, BSP, and NPT Threads and Fittings.
Product Specifications
Features 0
Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings
Manufacturing Notes 0
MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
5000

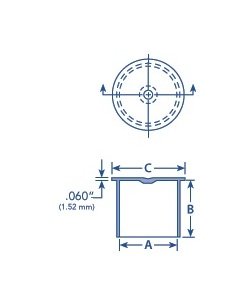

Specifications Flange Outer Diameter Dimension C
1.000 in | 25.4 mm
Specifications Flange Thickness
0.060 in | 1.52 mm
Specifications Inside Diameter Dimension A
0.738 in | 18.7 mm
Specifications Inside Length Dimension B
0.670 in | 17.0 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Standards
RoHS Compliant
Specifications To Fit Standard Thread Size
3/4 in
