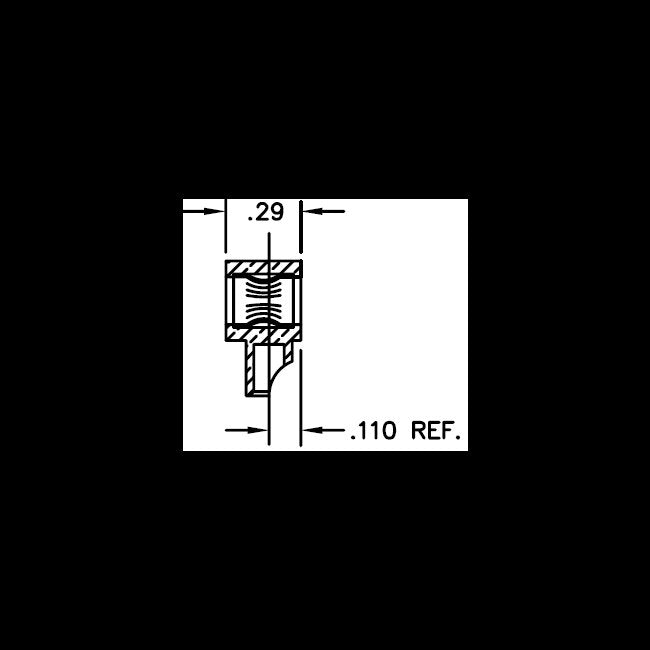

Flash Lamp Series 4mm Right Angle Socket Contact
Flash Lamp Series 4mm Right Angle Socket Contact
SKU:HIG-fb8ab9
High current 4mm socket contact with Multilam band technology for optimal performance in space-sensitive applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Flash Lamp Series 4mm Right Angle Socket Contact
$39.99
Quantity: 1
Claim Your Seller Account
Flash Lamp Series 4mm Right Angle Socket Contact
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Flash Lamp Series 4mm Right Angle Socket Contact from Connectronics is engineered to provide a reliable high current interconnection solution for applications prioritizing space, weight, and temperature considerations. Utilizing Multilam band contact spring finger technology, this contact offers superior current ratings with minimal temperature rise compared to traditional designs. Featuring silicone rubber over moldings on high voltage wires, it ensures a robust voltage barrier. Ideal for Laser Back Lighting, Illumination, and Percussion applications.
Product Specifications
Applications 0
LaserBack Lighting & IlluminationPercussion
Ordering Information 0
Flash lamp plugs can be ordered as single ended or double ended assemblies in any combination of molded plug or socket contact at each end. Consult factory for custom configuration part numbers.Flash lamp contacts can be ordered with or without wire terminated. connectronics offers a variety of wire constructions for use with flash lamp contacts. Consult factory for additional information.
Specifications Contact Body Material
Tellurium Copper Alloy 145, Silver Plated Per qq-s-365
Specifications Current Rating
65 A
Specifications Direct Current Dc Voltage
12 kV
Specifications Features
High Current RatingsOperating Voltage: through 12 KVDCTemperature Range: -40°C to +175°CSea Level to 10,000 ft OperationOvermolded Strain Relief available4mm, 5mm, 5.5mm and 6mm optionsStackable or Threaded options
Specifications Molded Strain Relief Material
Silicone Rubber, Gray
Specifications Multi Lam Contact Band Spring Fingers Material
Beryllium Copper Alloy, Gold Plated Per MIL-G-45204
Specifications Sea Level Altitude
0 to 10,000 ft
Specifications Size
4 mm | 0.157 in
Specifications Wirecable Material
Assemblies supplied with wire are terminated with #12; AWG (19/25; SPC conductor with silicone insulation rated for 20 KVDC (0.205 dia.) 1 REF. connectronics part no . 066-035-01.
