Flat Board Support for .217 Chassis Hole - 09 Series
Flat Board Support for .217 Chassis Hole - 09 Series
SKU:01C-e461c4
Securely lock circuit boards with the 09 Series Flat Board Support for .217 Chassis Hole. RoHS compliant, ASTM D 4066, PA0113 standard. Temperature range: -40 to 185F.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Flat Board Support for .217 Chassis Hole - 09 Series
$19.99
Quantity: 1
Claim Your Seller Account
Flat Board Support for .217 Chassis Hole - 09 Series
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

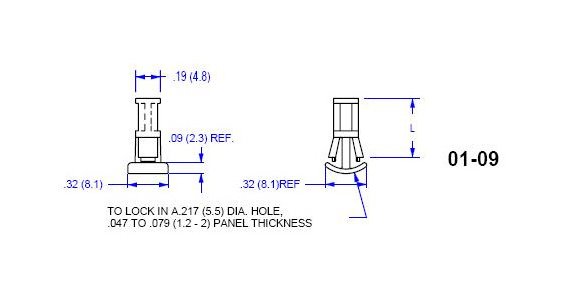

The 09 Series Flat Board Support is designed for easy installation on a chassis with a thickness range of .047-.079 inches. Crafted from Nylon 66 UL94V-2 material (UL94V-0 option available), it ensures secure yet releasable locking with minimal protrusion. This black support post meets RoHS compliance, ASTM D 4066, and PA0113 standards, suitable for a temperature range of -40 to 185F (-40 to 85C). Ideal for circuit board supports in various applications.
Product Specifications
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L
.630 (16.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
